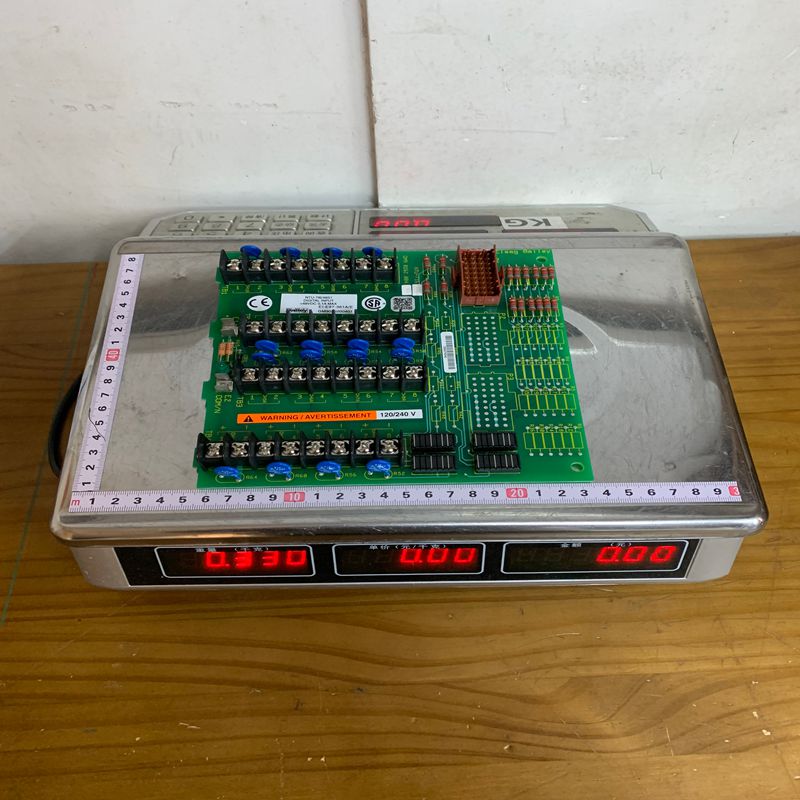

ABB NTU-7I6 Digital Input Terminal Unit

Description

ABB NTU-7I6 Digital Input Terminal Unit

The ABB NTU-7I6 (frequently seen as NTU-7I6/48S1 or NTU-7I6/24S1) is a Digital Input Module Termination Unit belonging to the ABB Bailey Infi 90 and Net 90 distributed control system (DCS) families. It serves as the physical interface between field-level digital signals and the system’s processing modules.

1. Product Detailed Description

The NTU-7I6 acts as a bridge in the Symphony Harmony / Infi 90 architecture. Its primary role is to provide a secure termination point for field wiring (from switches, contacts, or sensors) and then route those signals through a specialized termination cable to a Digital Input Slave Module (such as the IMDSI series).

It is designed for rack mounting and simplifies the organization of high-density I/O wiring within industrial cabinets. By separating the field wiring from the electronics, it allows for easier maintenance and module replacement without disturbing the field connections.

2. Product Parameters (Specifications)

3. Product Advantages

• Modular Maintenance: Allows the I/O modules to be replaced or upgraded while the field wiring remains securely attached to the terminal block.

• Signal Integrity: Provides a stable and organized environment for digital signal termination, reducing the risk of cross-talk or loose connections.

• System Reliability: Built to industrial standards for high-availability environments like power plants and refineries.

• Ease of Troubleshooting: The clear layout of the terminal blocks facilitates quick signal tracing and voltage testing during commissioning or maintenance.

4. Precautions & Considerations

• Voltage Compatibility: Crucial. Ensure that the voltage rating of the NTU-7I6 (e.g., 48VDC) matches the digital input module and the field devices. Connecting a 120VAC signal to a 24VDC termination unit will cause permanent damage.

• Power Sequencing: Always verify that the power to the field circuits is disconnected before performing any wiring or maintenance on the termination unit to avoid electrical shock or short circuits.

• Electrostatic Discharge (ESD): While the TU is passive, the connected modules are sensitive. Use proper grounding (ESD straps) when handling the assembly.

• Cable Integrity: Ensure the termination cable (connecting the NTU-7I6 to the Slave Module) is securely seated and protected from sharp bends or physical stress.

5. Product Applications

The NTU-7I6 is widely used in legacy and modernized industrial plants where the ABB Bailey Infi 90 system is installed:

• Power Generation: Monitoring status signals from breakers, turbine trip units, and auxiliary equipment.

• Petrochemical & Refining: Interfacing with pressure switches, flow switches, and limit switches on valves.

• Water & Wastewater: Collecting digital data from pump station contacts and tank level switches.

• Pulp & Paper: Managing discrete logic signals across large-scale manufacturing lines.
