ABB NINT-68C Inverter Control Board

Description

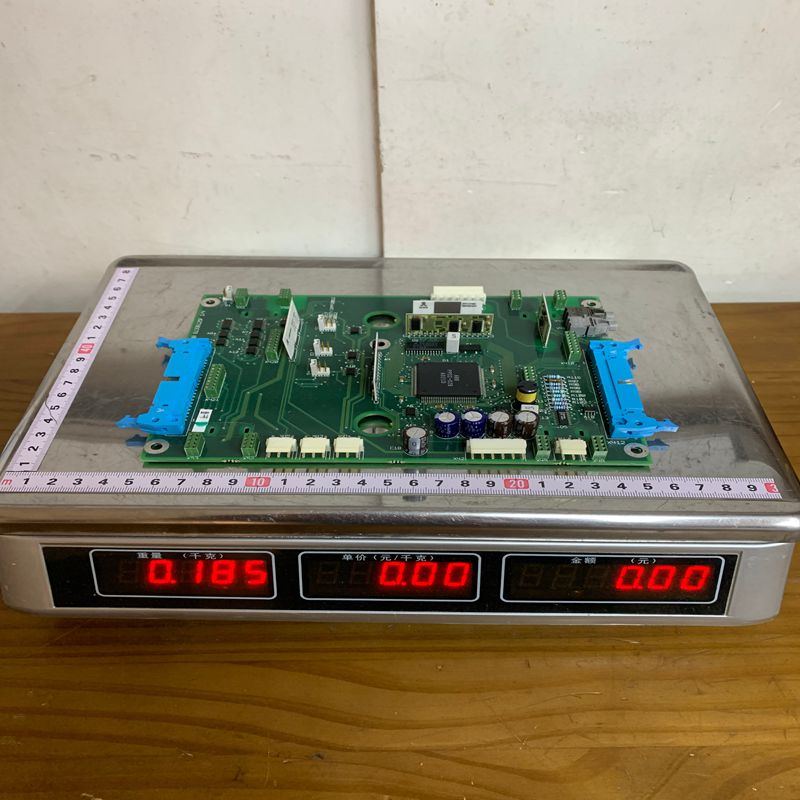

ABB NINT-68C Inverter Control Board

The ABB NINT-68C is a high-performance Main Inverter Control Board (also referred to as an Interface/Control Module) used primarily in the ABB ACS600 series and related variable frequency drives (VFDs). It acts as the “brain” of the inverter power stage, managing high-speed signal processing and communication between the drive’s control unit and the power semiconductors.

1. Product Detailed Description

The NINT-68C is a specialized printed circuit board (PCB) designed to handle the critical switching logic and monitoring of industrial inverters. It serves as an intermediary interface that converts control commands into high-frequency switching signals for the IGBTs (Insulated-Gate Bipolar Transistors).

Key features include:

• Fiber-Optic Communication: It uses fiber-optic links to communicate with the main control unit, ensuring high-speed data transfer while providing complete electrical isolation and immunity from electromagnetic interference (EMI).

• Integrated Monitoring: The board continuously monitors the health of the inverter stage, including temperature, current, and fault conditions.

• Modular Architecture: Designed for easy integration and replacement within the ACS600 inverter modules.

2. Product Parameters (Specifications)

3. Product Advantages

• High Reliability: Built with industrial-grade components to withstand the harsh thermal and electrical environments found in heavy industry.

• Noise Immunity: The use of fiber optics for signal transmission eliminates the risk of ground loops and electrical noise interference common in high-power motor drives.

• Precise Motor Control: Facilitates the advanced Direct Torque Control (DTC) technology used by ABB, allowing for highly accurate speed and torque management.

• Simplified Maintenance: Its modular design allows for quick swapping during repairs, minimizing machinery downtime.

4. Cautions & Precautions

• Electrostatic Discharge (ESD): This is a sensitive electronic component. Always use an ESD wrist strap and follow anti-static procedures when handling the board.

• High Voltage Danger: Ensure the drive is completely powered down. Wait at least 5–15 minutes (refer to drive manual) for the DC bus capacitors to discharge before opening the cabinet or touching the board.

• Fiber Optic Care: Do not bend fiber optic cables beyond their minimum bend radius, and ensure the connectors are clean. Even a small amount of dust can cause communication failures.

• Firmware Matching: When replacing the board, ensure the firmware version is compatible with the existing drive control system to avoid “Version Mismatch” faults.

5. Product Applications

The NINT-68C is predominantly found in heavy-duty industrial environments where high-power motor control is required:

• Metals & Mining: Large conveyors, crushers, and rolling mills.

• Oil & Gas: Control for large pumps, compressors, and drilling rigs.

• Pulp & Paper: Speed control for paper machines and winding equipment.

• Water Utilities: High-capacity water treatment pumps and aeration fans.
