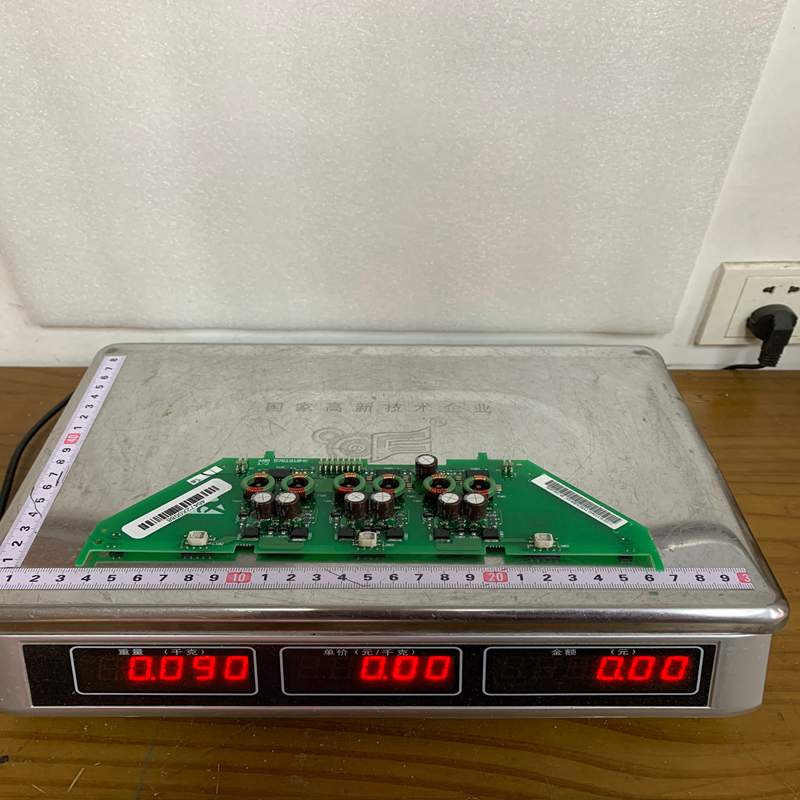

ABB NGDR-03C IGBT Gate Driver Board

Description

ABB NGDR-03C IGBT Gate Driver Board

The ABB NGDR-03C is an industrial-grade Gate Driver Board (also classified as a charging or main circuit control board in specific configurations) primarily used within ABB’s high-power medium-voltage and low-voltage variable frequency drives (VFDs), such as the ACS600 or legacy ACS800 series.

Product Detailed Description

The NGDR-03C functions as the critical interface between the drive’s central control unit and its power semiconductor switches (such as IGBTs or GTOs). Its primary role is to amplify the low-voltage control signals from the main processor into the high-current, fast-switching pulses required to dynamically turn the power transistors on and off.

Additionally, it contains onboard diagnostic circuitry to monitor the health of the power stage and protect the semiconductors from catastrophic electrical failure.

Technical Parameters

Product Advantages

• High-Speed Switching Precision: Engineered to minimize switching propagation delays, ensuring optimum efficiency and low harmonic distortion in the drive’s output.
• Robust Electrical Isolation: Provides exceptional galvanic isolation, shielding the sensitive, low-voltage control processors from the high-voltage transients present in the inverter stage.
• Integrated Hardware Protection: Features rapid desaturation monitoring to instantly detect overcurrent or short-circuit conditions in the IGBTs, shutting down the pulses within microseconds to prevent module explosion.
• Industrial Durability: Built using heavy-duty, industrial-grade components designed to withstand continuous thermal cycling and high electromagnetic interference (EMI).

Important Considerations & Precautions

• Electrostatic Discharge (ESD): The NGDR-03C is highly sensitive to static electricity. Always wear a grounded ESD wrist strap and follow static-safe handling procedures during installation or replacement.
• Residual Voltage Danger: Before servicing or swapping the board, ensure the drive’s main AC power is disconnected and verify that the DC bus capacitors have completely discharged (this can take 5 to 15 minutes; check with a multimeter).
• Fiber Optic / Gate Lead Routing: Ensure all gate connection leads and fiber optic cables (if used) are routed exactly as originally specified. Incorrect routing can introduce EMI, causing misfires or damaging the power modules.
• Firmware/Hardware Matching: Verify that the “03C” revision matches the specific hardware configuration and control software version of your existing ABB drive rack to avoid compatibility faults.

Product Applications

The NGDR-03C is strictly utilized within heavy industry drive systems:

• Metals & Mining: Used in the VFDs controlling massive conveyors, grinders, and heavy-duty mine hoists.
• Oil & Gas: Integrated into high-power compressor, pump, and drilling rig drive applications.
• Marine Systems: Found within propulsion drives and large winch systems on industrial vessels.
• Pulp & Paper: Implemented in the synchronized multi-drive sections of paper production machines where precise speed control is essential.
