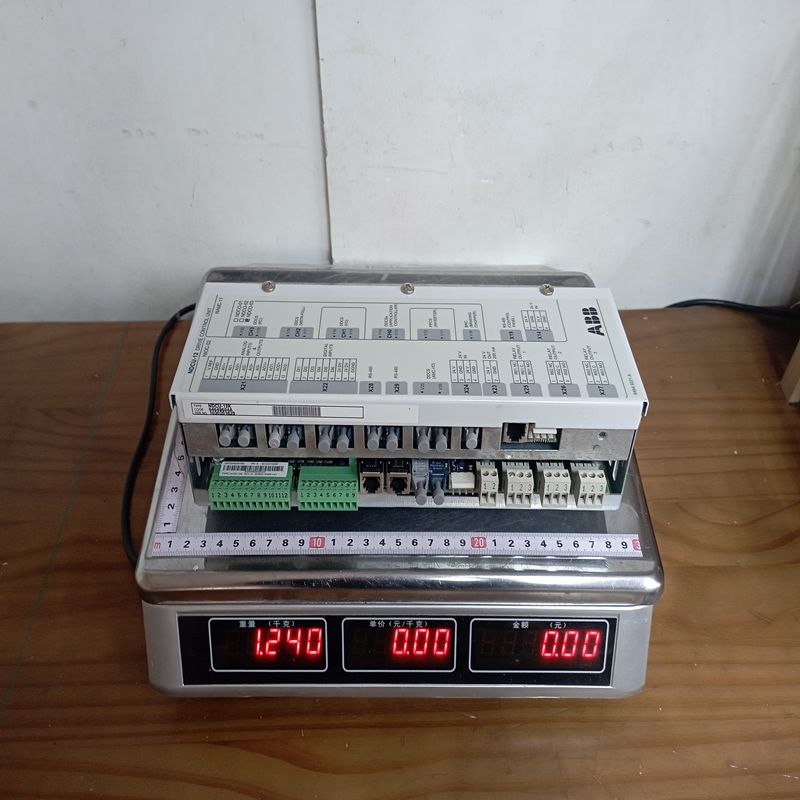

ABB NDCU-12K Inverter Drive Control Unit

Description

ABB NDCU-12K Inverter Drive Control Unit

The ABB NDCU-12K is a high-performance Drive Control Unit designed primarily for the ACS800 series of industrial drives. It serves as the “brain” of the frequency converter, managing motor control logic, I/O processing, and communication with external automation systems.

1. Technical Specifications (Product Parameters)

The NDCU-12K is a sophisticated assembly that typically includes a control board (such as the RDCU) mounted within a protective housing.

2. Product Advantages

• Reliability: Built with industrial-grade components to withstand harsh environments (vibration, heat, and electrical noise).

• High-Speed Control: Utilizes advanced Direct Torque Control (DTC) technology, providing exceptionally fast and accurate motor response.

• Modular Design: The unit is easily replaceable, reducing “Mean Time to Repair” (MTTR) in critical industrial processes.

• Seamless Integration: Supports a wide array of fieldbus protocols (Profibus, Modbus, Ethernet/IP), making it compatible with almost any PLC system.

• Precision: Offers superior control over motor speed and torque, leading to energy savings and reduced mechanical wear on machinery.

3. Key Applications

The NDCU-12K is versatile and found in heavy-duty industrial sectors where precision and uptime are non-negotiable:

• Metals & Mining: Used in conveyor systems, grinders, and crushers.

• Pulp & Paper: Controls large paper machines and winders requiring synchronized motion.

• Oil & Gas: Manages pumps, compressors, and centrifuges.

• Marine: Integrated into propulsion systems and deck machinery.

• Water & Wastewater: Regulates large-scale pumping stations.

4. Important Considerations & Precautions (Notes)

When handling or installing the NDCU-12K, please observe the following:

• Static Sensitivity: This unit contains highly sensitive Electronic Static Discharge (ESD) components. Always wear a grounding wrist strap during installation.

• Firmware Compatibility: Ensure the firmware version on the NDCU matches the specific requirements of your ACS800 power module.

• Fiber Optic Care: The DDCS communication links use fiber optic cables. Do not bend these cables sharply (maintain a minimum bend radius) and ensure connectors are clean.

• Power Supply: Always verify that the 24V DC power supply is stable and within the specified tolerance to prevent logic errors or hardware damage.

• Cooling: Ensure the cabinet housing the unit has adequate airflow, as overheating can lead to intermittent faults.

5. Summary

The ABB NDCU-12K remains a cornerstone of the ACS800 drive ecosystem, valued for its durability and the sophisticated control it provides over complex motor applications. While it is a robust piece of hardware, its performance is highly dependent on correct parameter configuration and environmental protection.
