ABB INNIS-21 Network Interface Module

Description

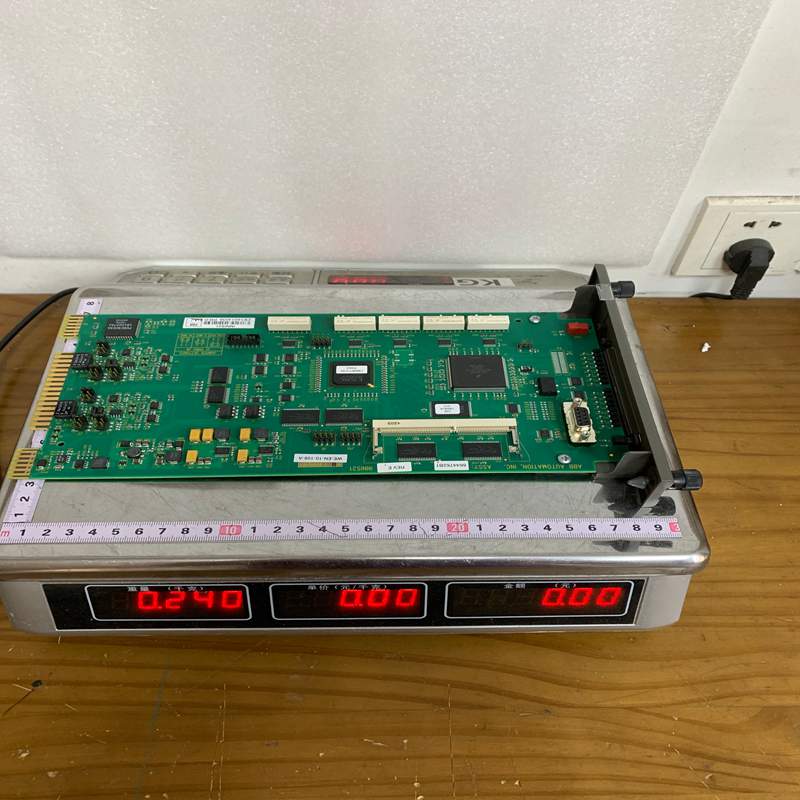

ABB INNIS-21 Network Interface Module

The ABB INNIS-21 (often formatted as INNIS21) is a Network Interface Slave (NIS) Module designed for ABB’s Symphony Harmony / INFI 90 / Network 90 Distributed Control System (DCS) platforms. It functions as an intelligent interface hardware module to manage data transfer across the INFI-NET (Cnet) process communication network.

Product Detailed Description

The INNIS21 module works in tandem with a Network Interface Master (NIM) module (such as the INNPM12 or INNPM22) to form a complete network node interface. It handles the low-level physical and data-link protocol functions of the INFI-NET loop. By offloading token-passing, node polling, packet formatting, and error-checking tasks from the main node processor, it ensures high-speed, deterministic data transmission throughout large industrial installations.

Technical Parameters

Product Advantages

• High System Capacity: Capable of operating on networks supporting up to 250 active nodes on a single Cnet ring, enabling massive plant-wide scalability.
• Processor Offloading: Handles high-speed network protocol logic independently, freeing up the Master processor (NPM) and controller memory to focus strictly on real-time control algorithms.
• Redundancy Support: Designed to work within redundant INFI-NET loop architectures to prevent a single point of network failure.
• Backward Compatibility: Drops directly into existing INFI 90 cabinet racks (MMUs), allowing plants to upgrade legacy systems without rewriting field logic.

Important Considerations (Precautions)

• Paired Operation: The INNIS21 is a slave module and cannot operate standalone; it must be installed adjacent to a compatible Master module (e.g., INNPM22) on the MMU backplane.
• ESD & Rack Insertion: Always power down the module slot or follow strict anti-static procedures when inserting or removing card modules from the rack frame to prevent bus corruption.
• Bus Termination: Ensure network loop termination cables (NTDI/NTCL panels) are properly seated to prevent signal reflections on the INFI-NET communication lines.
• Firmware Matching: Verify that the revision of the INNIS21 matches the operational requirements and firmware revisions of the paired INNPM module and DCS software version.

Product Applications

The INNIS21 is used in large-scale, process-critical industries running ABB INFI 90 or Symphony Harmony DCS architectures:

• Power Plants: Handling real-time communications across boiler controls, turbine trips, and balance-of-plant automation loops.
• Petrochemical & Refineries: Interfacing distributed control nodes across continuous distillation and cracking units.
• Pulp & Paper: Coordinating high-speed paper machine drives and stock preparation processes.
• Water Treatment: Managing communications between distributed pumping stations and central control rooms.
