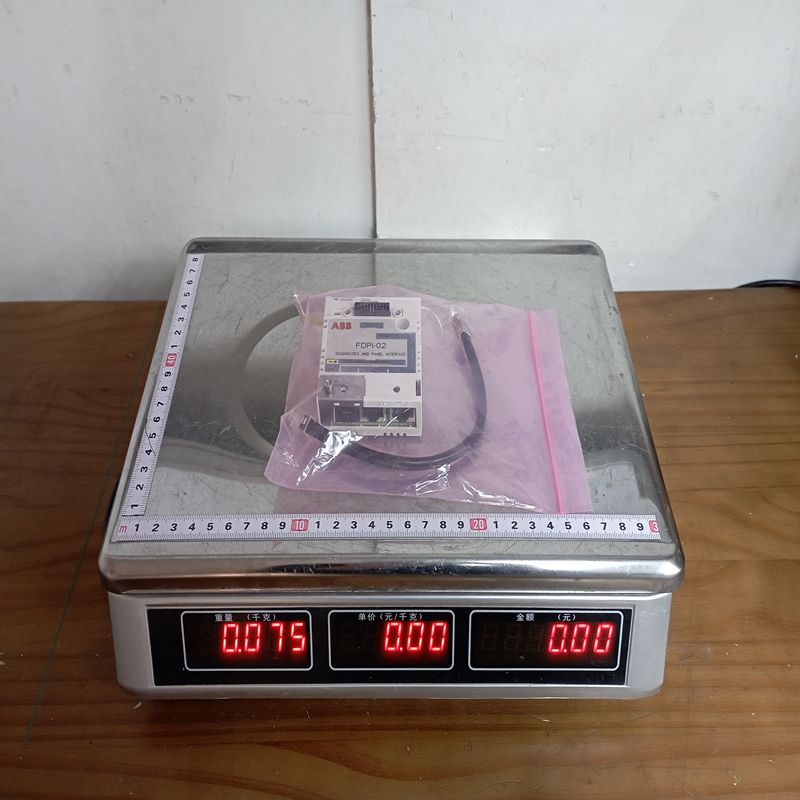

ABB FDPI-02 Communication Interface Module

Description

ABB FDPI-02 Communication Interface Module

The ABB FDPI-02 is a high-performance Diagnostics and Protection Interface module specifically designed for use with ABB’s high-power industrial drives, such as the ACS880 series. It serves as a sophisticated link between the drive’s control unit and the power stages, providing enhanced monitoring and rapid fault protection.

1. Product Description

The FDPI-02 is an interface board that handles the communication and signaling between the drive control unit (typically the BCU) and the power modules (Inverter units). Unlike standard interfaces, the “Diagnostics” aspect of the FDPI-02 allows for granular data collection regarding the health and status of the power semiconductors (IGBTs) and the DC bus.

2. Technical Specifications

While specific electrical tolerances can vary based on the drive frame size, the general parameters include:

3. Product Advantages

• Enhanced Fault Detection: It provides faster-than-software protection for short-circuits and overcurrent events.

• Detailed Diagnostics: It can pinpoint which specific power module in a parallel configuration has failed, drastically reducing downtime.

• Galvanic Isolation: By using fiber optic links, it ensures that high-voltage spikes in the power stage do not damage the sensitive control electronics.

• Reliability: Designed for heavy-duty industrial environments with high electromagnetic interference (EMI).

4. Key Applications

The FDPI-02 is primarily used in large-scale industrial motor control where reliability is critical:

• Metals & Mining: Used in mill drives and heavy conveyors.

• Oil & Gas: Control for large pumps and compressors.

• Marine: Propulsion systems and thruster controls.

• Power Generation: Wind turbine converters and excitation systems.

5. Important Considerations & Precautions

Caution: Dealing with high-power drive components involves lethal voltages. Only qualified personnel should handle these modules.

• Electrostatic Discharge (ESD): The FDPI-02 is highly sensitive to static. Always use an ESD wrist strap during installation.

• Fiber Optic Integrity: Ensure fiber optic cables are not bent beyond their minimum radius, as this will lead to communication “CRC errors” and drive trips.

• Firmware Compatibility: Ensure the drive’s control unit firmware supports the FDPI-02 version; mismatching can lead to initialization failures.

• Tightening Torque: If replacing the module, ensure all mounting screws are tightened to the specified torque to maintain proper grounding.
