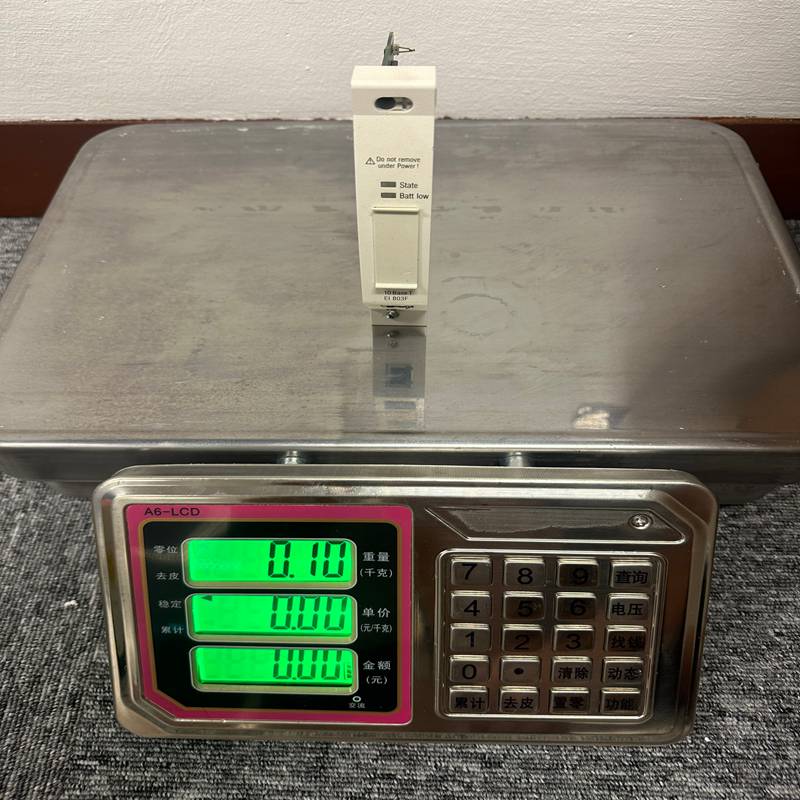

ABB EI803F Ethernet Communication Module

Description

ABB EI803F Ethernet Communication Module

The ABB EI803F is a high-performance Evolution Ethernet Module specifically designed for the Symmetry AC 800F distributed control system (DCS) platform. It serves as a vital communication bridge, enabling the controller to interface with Ethernet-based networks and protocols.

1. Product Parameters

The EI803F is engineered for industrial reliability and seamless integration within the Freelance / AC 800F architecture.

2. Key Product Advantages

• High-Speed Connectivity: Supports 100 Mbps Ethernet, ensuring rapid data exchange between the controller and the HMI or other PLCs.

• Seamless Integration: Designed specifically for the Freelance system, allowing for “Plug & Produce” configuration without complex third-party drivers.

• Robust Reliability: Built to withstand harsh industrial environments with high electromagnetic compatibility (EMC) standards.

• Scalability: Allows the AC 800F system to expand easily by connecting to wider plant-level networks.

• Future-Proofing: As an “Evolution” series module, it provides a bridge for older systems to adopt modern Ethernet-based communication standards.

3. Product Applications

The EI803F is primarily used in process automation where reliable, high-speed data transmission is critical.

• Process Industries: Oil & gas, chemical processing, and pharmaceutical manufacturing.

• Power Plants: Monitoring and controlling auxiliary systems via Modbus TCP.

• Water & Wastewater: Connecting remote pumping stations to a central control room.

• Substation Automation: Facilitating communication between IEDs (Intelligent Electronic Devices) and the DCS.

4. Important Considerations & Precautions

To ensure long-term stability and prevent hardware damage, keep the following in mind:

• Static Protection: Always use an ESD (Electrostatic Discharge) wrist strap when handling the module to avoid damaging internal circuits.

• Firmware Compatibility: Ensure the firmware version of the EI803F is compatible with your AC 800F controller and the version of Freelance Engineering software being used.

• Network Security: Since this module connects to Ethernet, ensure the network is protected by industrial firewalls to prevent unauthorized access.

• Cabling: Use shielded twisted pair (STP) Category 5e or higher cables to minimize interference in high-noise industrial environments.

• Hot Swapping: Do not remove or insert the module while the base unit is powered unless the specific hardware configuration explicitly supports “Hot Swap” in that slot.

5. Installation Diagram (Conceptual)

The module is typically inserted into one of the four communication slots on the AC 800F base unit (e.g., PM 802F or PM 803F). Once seated, it is secured with screws to ensure a solid connection to the internal bus.
