ABB DSCA 114 Communication Board

Description

ABB DSCA 114 Communication Board

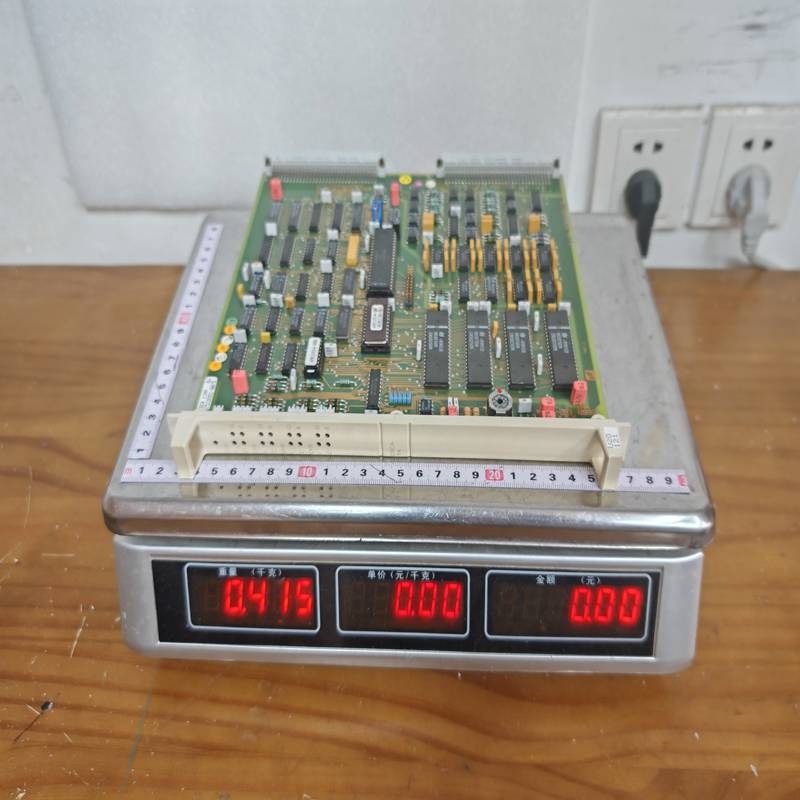

The ABB DSCA 114 (Product ID: 57510001-AA or EXC57510001-AA) is an industrial-grade Asynchronous Serial Communication Board/Module. It is a core networking component belonging to legacy and highly reliable ABB distributed control systems (DCS), primarily utilized within the Advant Master (such as Advant OCS with MasterPiece controllers) and Symphony control architectures.

Product Detailed Description

The DSCA 114 acts as an asynchronous communication interface that allows ABB system controllers to establish point-to-point or multi-drop serial data connections with external or peripheral equipment. It handles the critical conversion and timing required for serial data exchange over standard interfaces like RS-232C or RS-485, ensuring that older legacy systems can communicate seamlessly with peripherals like printers, modems, terminals, or third-party Human-Machine Interfaces (HMIs).

Technical Parameters

Product Advantages

• Flexible Communication Topologies: Supports both point-to-point (for dedicated peripheral connection) and multi-drop configurations (for networking multiple serial devices over a single bus).
• Industrial-Grade Signal Isolation: Features built-in signal isolation (up to 500V) to safeguard internal processor loops against external electrical faults or ground loops on the serial lines.
• Rugged Longevity: Engineered with premium, high-reliability circuitry designed to run continuously in heavy industrial environments prone to temperature fluctuations and electromagnetic interference (EMI).
• Seamless DCS Integration: Native compatibility with ABB Advant Master and Safeguard 400 systems means zero third-party gateway friction and simple software configuration via ABB engineering tools.

Important Considerations & Precautions

• Baud Rate and Protocol Matching: Asynchronous serial communication requires manual alignment of data parameters. Ensure the baud rate, parity, stop bits, and data bits are mapped identically on both the DSCA 114 and the connected peripheral.
• Distance Limitations: Be strictly aware of standard cable length limits—RS-232 is generally limited to 15 meters (50 feet), whereas RS-485 can reach up to 1200 meters. Exceeding these limits without active signal boosters will cause data corruption.
• Static Prevention (ESD): This module contains sensitive integrated circuits on an exposed PCB frame. Always wear a grounded anti-static wrist strap when inserting, removing, or handling the board.
• Termination Resistors: When configured for an RS-485 multi-drop network, appropriate termination resistors must be enabled at the physical endpoints of the bus line to stop signal reflection errors.

Product Applications

• Legacy Subsystem Integration: Bridging ABB distributed control networks with legacy third-party PLCs, flow computers, or older analytical instruments.
• Peripheral Reporting: Driving local logging equipment like alarm printers, operator display terminals, or control-room modems.
• Safety & Fire Systems: Deployed in Safeguard 400 series or emergency shutdown (ESD) cabinets to feed non-critical monitoring diagnostic data to localized engineering stations.
