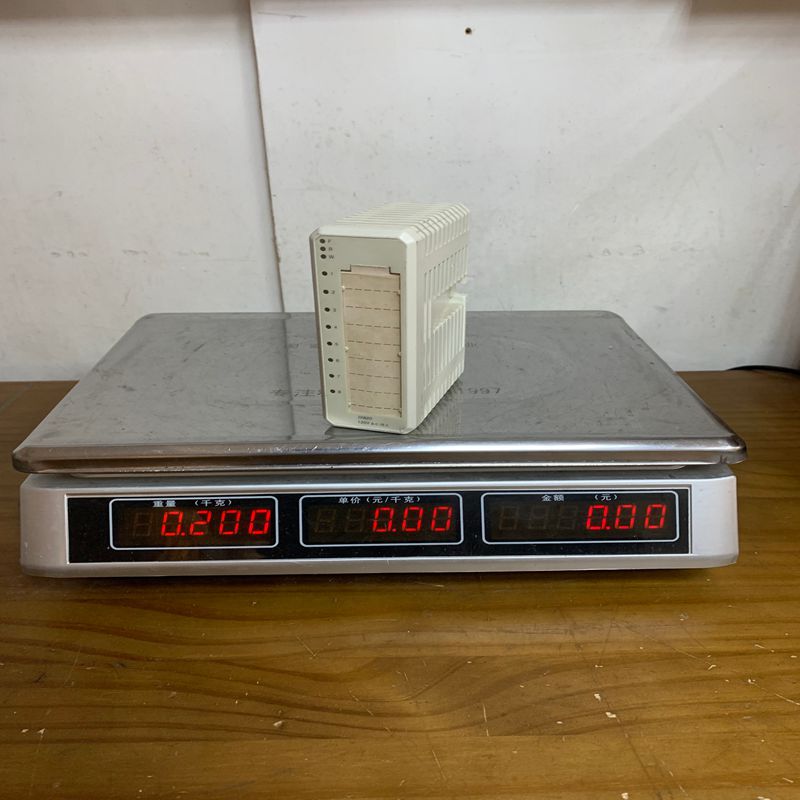

ABB DI820 Digital Input Module

Description

ABB DI820 Transmitter

The ABB DI820 is a high-reliability 8-channel Digital Input Module belonging to the S800 I/O distributed I/O system family. It is engineered to interface field signals directly with ABB’s control systems, such as the Advant Controller 450, MasterPiece, or System 800xA.

Product Detailed Description

The DI820 is an AC/DC digital input module featuring 8 individually isolated channels. It is used to monitor the status of field devices such as pushbuttons, limit switches, selector switches, and relay contacts. Because each channel is galvanically isolated from the others and from the system logic, it offers exceptional noise immunity and allows the connection of signals from different voltage sources or phases onto a single module.

Technical Parameters

Product Advantages

• Individual Channel Isolation: Each channel is isolated from the next, preventing cross-talk, ground loops, and allowing the module to safely handle different voltage groups or phases simultaneously.
• AC/DC Versatility: Capable of accepting both high-voltage AC and DC inputs, reducing the variety of spare parts needed in a facility.
• Advanced Diagnostics: Built-in LEDs on the front panel provide real-time status indication for each individual input, along with a “Fault” LED to signal internal module errors.
• Hot-Swapping (RIUP): Supports Run-Time Insertion and Peripheral (RIUP), allowing technicians to replace a faulty module without powering down the rest of the I/O cluster.

Important Considerations & Precautions

• Input Thresholds: Ensure that the “OFF” state voltage of the field device drops below 30 V AC (or 20 V DC). Residual voltages or leakage currents from solid-state sensors above this threshold may cause the channel to falsely stay “ON.”
• Baseplate Compatibility: The module requires a matching Termination Unit (TU) for field wiring. Ensure the selected TU matches the voltage rating and insulation requirements of a 120V system.
• Fusing: Although the module is robust, external fuses are highly recommended on each input loop to protect the module and field cables against short-circuit faults.
• Heat Dissipation: When mounting multiple high-voltage modules close together, ensure cabinet ventilation is adequate to prevent localized overheating.

Product Applications

The high voltage rating and channel isolation make the DI820 ideal for demanding heavy-industrial environments:

• Power Distribution: Monitoring circuit breaker statuses, disconnector switches, and protective relay contacts in substations.
• Motor Control Centers (MCC): Interfacing with contactor auxiliary contacts and thermal overload trips operating on 120V control circuits.
• Oil & Gas / Chemical: Reading status contacts from distributed machinery skid packages across long cable runs.
• Water Treatment: Connecting float switches, valve position limits, and emergency stop buttons located throughout a plant infrastructure.
