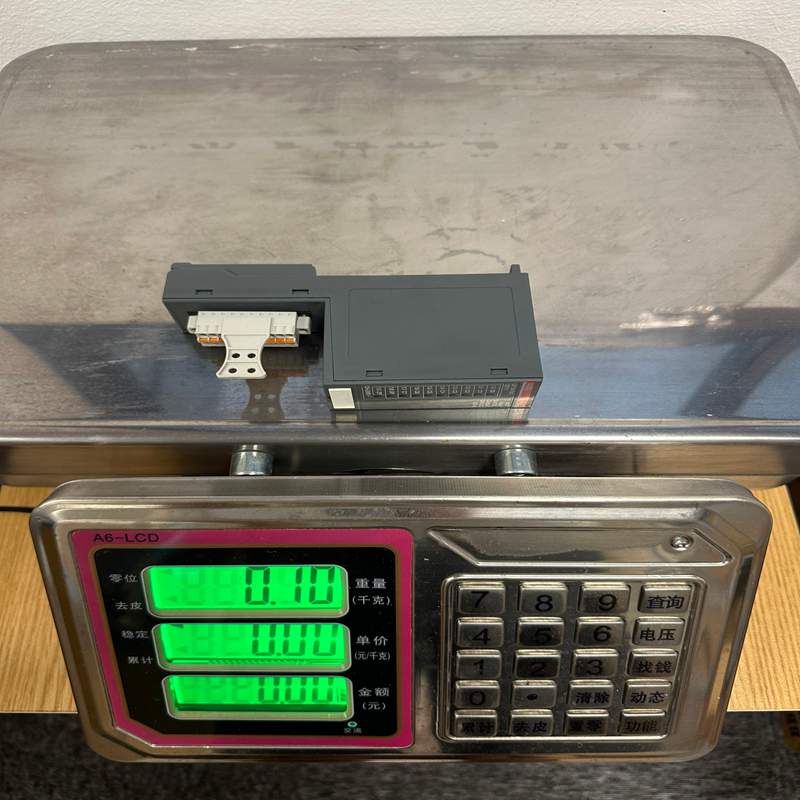

ABB DC541-CM 1SAP270000R0001 digital input and output module

Description

ABB DC541-CM 1SAP270000R0001 digital input and output module

The ABB DC541-CM (Order Code: 1SAP270000R0001) is a high-speed Interrupt / Combinated Function Module belonging to the ABB AC500 PLC platform. It provides fast digital input/output channels tailored for high-speed tasks such as counting, position detection, pulse generation, and interrupt processing.

Product Detailed Description

The DC541-CM functions as an intelligent I/O extension module within the AC500 automation system. Unlike standard digital I/O expansion modules, the DC541-CM features integrated high-speed counters and interrupt processing capabilities independent of standard PLC task cycles. It mounts directly onto an AC500 Terminal Base (such as TU515 or TU516) using a 1-wire connection scheme.

Technical Parameters

Product Advantages

• High-Speed Execution: Designed specifically for tasks that require real-time processing faster than standard PLC scan times (e.g., microsecond-level edge triggers and high-frequency counting).
• Flexible Channel Bimodality: All 8 channels can be individually programmed as inputs or outputs, maximizing panel flexibility while minimizing inventory parts.
• Integrated Special Functions: Built-in hardware support for AB-phase encoder inputs, frequency measurement, pulse width modulation (PWM), and external hardware interrupt generation.
• Hot-Swappable Terminal Base Mount: Mounts onto the AC500 terminal block base (TU5xx), allowing easy wiring maintenance without disconnecting individual field lines.
• Automation Builder Integration: Configured easily within ABB’s Automation Builder software environment using graphical function block libraries.

Important Considerations & Precautions

• Requires Base Unit: The DC541-CM module requires a compatible AC500 Terminal Base (e.g., TU515 / TU516) for field wiring connections.
• Polarity & Overvoltage Protection: Ensure the external 24 V DC field power supply is properly filtered and protected against reverse polarity and transient voltage spikes.
• Shielding for High-Speed Signals: When using fast counter modes or high-frequency encoder signals, shielded twisted-pair cables must be used to prevent electromagnetic interference (EMI).
• Current Limits: Do not exceed the maximum output load current of 0.5 A per channel or total backplane bus power limits.

Product Applications

• High-Speed Packaging & Conveying: Registration mark detection, fast rejection sorting, and item counting.
• Motion & Position Tracking: Quadrature encoder feedback handling for linear axes, winders, or rotating tables.
• Pulse Width Modulation (PWM): Proportional control of heating elements, small DC drives, or metering pumps.
• Time-Critical Event Interrupts: Triggering immediate subroutines in response to sensor state changes without delay.
