Description

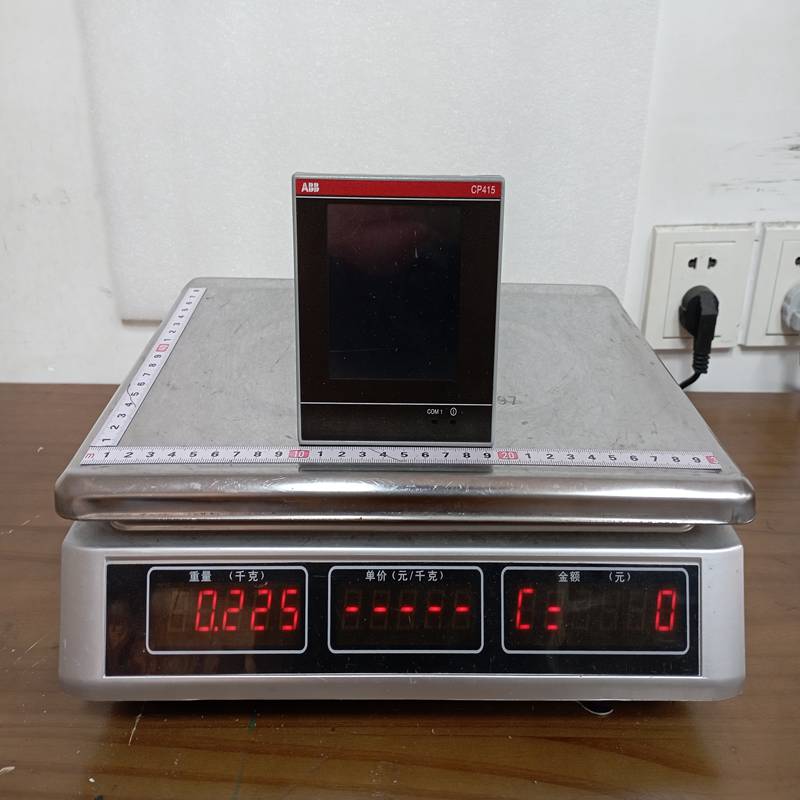

ABB CP415M HMI Touch Panel Control Panel
The ABB CP415M (Part Number: 1SBP260191R1001) is a compact Human-Machine Interface (HMI) panel from ABB’s CP400 series. Designed primarily for seamless pairing with ABB’s AC500 and AC500-eCo PLC platforms, it provides operators with a simple, cost-effective touch display for localized monitoring, data visualization, and machine control.
Technical Specifications
| Feature | Specification |
| Product Model | CP415M (1SBP260191R1001) |
| Display Type | 3.5-inch FSTN LCD Touchscreen (16 Grey Levels) |
| Resolution | 240 \times 240 pixels |
| Function Keys | 5 programmable hardware keys |
| Supply Voltage | 24 V DC |
| Power Consumption | Approx. 0.17 A / 20 VA |
| User Memory | 4 MB Flash ROM |
| Communication Ports | 1 x Serial Port (RS232 / RS422 / RS485 configurable) |
| Supported Protocols | Modbus RTU, AC500_Modbus, ASCII |
| Front Panel Protection | IP65 / NEMA 4X (indoor use) |
| Configuration Software | CP400Soft |
Key Advantages
- Compact Footprint: With a 96 \times 96 mm front bezel size, it easily fits into small control panels, door cutouts, or space-constrained machinery.
- Integrated Control & Diagnostics: Configurable using CP400Soft, supporting alarm management, real-time trend visualization, password protection across multiple security levels, and custom macro/ladder functions.
- Direct AC500 Connectivity: Tailored specifically for fast integration with ABB AC500 PLCs using native driver communication protocols.
- Rugged Front Build: IP65-rated front panel provides solid protection against dust and low-pressure water jets inside control enclosures.
Important Considerations & Precautions
- Lifecycle Status: The CP400 series (including CP415M) is classified as Obsolete / Legacy by ABB, having been superseded by the newer CP600-eCo and CP600 HMI series. New designs should consider the CP600 family.
- Display Technology: Uses a monochrome/grey-scale STN LCD. Avoid exposure to direct sunlight or environments with large, rapid temperature fluctuations, which can affect screen contrast and liquid crystal response.
- Liquid Leak Warning: If the glass panel is cracked or broken, avoid contact with the internal LCD liquid as it contains an irritant; wash thoroughly with water if contact occurs.
- Single Serial Interface: Features only one configurable serial port (no built-in Ethernet on this model), limiting its connectivity to point-to-point or simple multi-drop serial networks.
Product Applications
- Compact Machinery: Small packaging machines, labeling equipment, and dosing stations requiring basic parameter adjustments.
- Building Automation: Local HMI terminal for pump controllers, small HVAC units, or ventilation fans.
- Substation / Panel Monitoring: Auxiliary HMI display mounted on cabinet doors to monitor discrete I/O statuses and system alarm logs.
