ABB CI801 3BSE022366R1 Communication Interface Module

Description

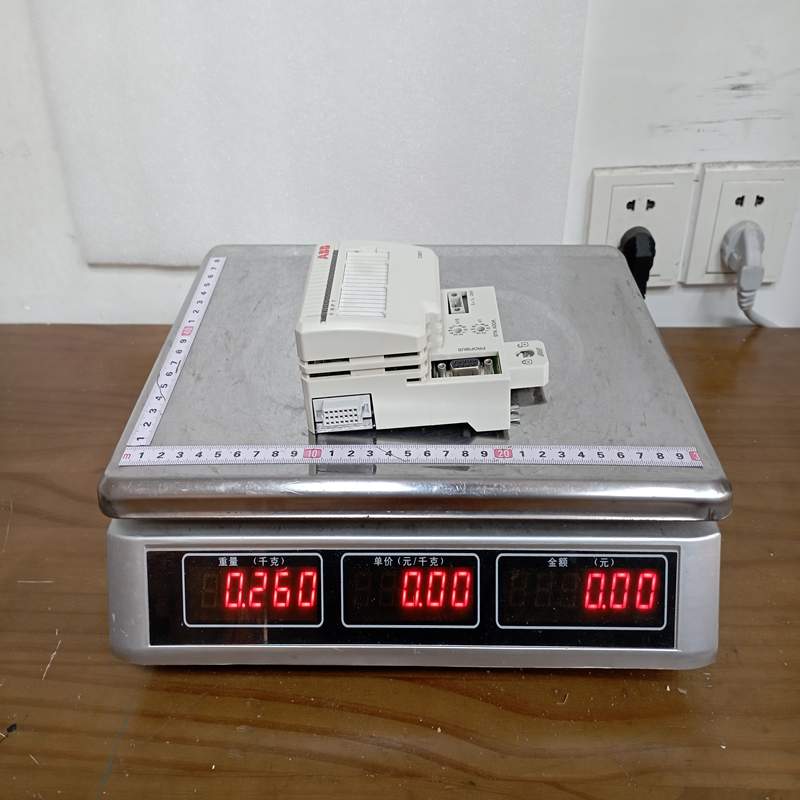

ABB CI801 3BSE022366R1 Communication Interface Module

The ABB CI801 (Part Number: 3BSE022366R1) is a high-performance FCI (Fieldbus Communication Interface) module belonging to the S800 I/O system family. It serves as the crucial communication link between a master controller (such as an AC 800M) and distributed S800 I/O modules over a PROFIBUS DP network.

Product Detailed Description

The CI801 is a modular, DIN-rail mounted interface unit that manages the input/output data exchange for up to 24 S800 I/O modules (when using extension cables). It handles the conversion between the internal module bus (ModuleBus) and the standard PROFIBUS DP-V1 fieldbus protocol. It is highly valued in distributed control architectures for its ability to pass hot-configuration changes and detailed diagnostics back to the control room.

Technical Parameters

Product Advantages

• High Efficiency: Provides high-speed cyclic data transfer via PROFIBUS DP, ensuring rapid updates of process variables.
• Hot Configuration in Run (HCIR): Allows users to modify system configurations, add modules, or exchange components while the system is fully operational without triggering a process shutdown.
• Advanced Diagnostics: Supports PROFIBUS DP-V1, enabling it to pass acyclic alarms and detailed diagnostic statuses (such as short-circuits or wire breaks on I/O channels) to the upper-level DCS/PLC.
• Space-Saving Design: The compact footprint of the S800 series optimizes control cabinet real estate, allowing for high-density distributed I/O clusters.

Important Considerations (Precautions)

• Address Setup: The PROFIBUS node address must be configured correctly via the rotary switches on the module faceplate before powering up the device. Changing switches while live requires a reboot to take effect.
• Termination: Ensure proper RS-485 termination resistors are activated at the physical ends of the PROFIBUS DP network segment to avoid signal corruption and intermittent communication drops.
• Power Supply Quality: Use a clean, regulated 24V DC industrial power supply. Voltage dips below 19.2 V can cause the interface module to reset, dropping the entire I/O cluster offline.
• GSD File Matching: During system engineering (e.g., in ABB Compact Control Builder or 800xA), make sure the imported GSD file exactly matches the hardware revision of the CI801 to prevent parameter mismatch faults.

Product Applications

The CI801 is utilized globally across process and discrete manufacturing industries where ABB System 800xA or other PROFIBUS-capable master controllers are deployed:

• Oil & Gas / Petrochemical: Gathering field signals from remote hazardous area enclosures and transmitting them to a central control room.
• Power Generation: Distributed monitoring of turbine auxiliaries, water treatment loops, and balance-of-plant (BOP) systems.
• Chemical Processing: Connecting digital and analog signals across highly automated batch processing lines.
• Pulp & Paper: Distributing I/O stations close to the machinery across massive paper mills to reduce wiring costs.
