ABB CDP312R Inverter Control Panel

Description

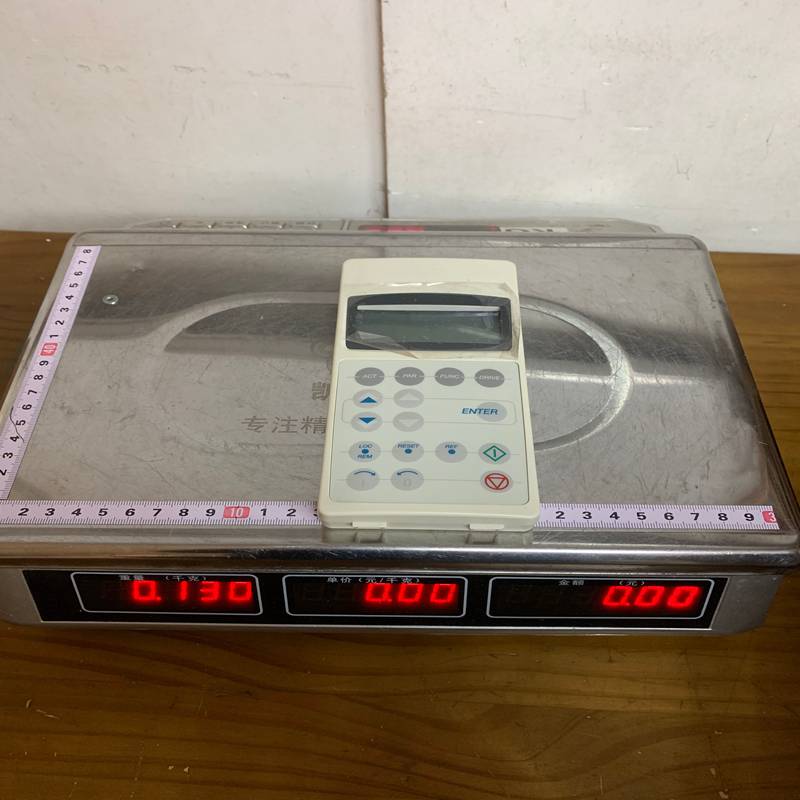

ABB CDP312R Inverter Control Panel

The ABB CDP312R is a high-performance Control Panel (also referred to as an Operator Panel or Keypad) specifically designed for use with ABB’s industrial variable speed drives, such as the ACS600 and ACS800 series. It serves as the primary interface for commissioning, monitoring, and troubleshooting high-power motor control systems.

Product Detailed Description

The CDP312R features a multi-line alphanumeric LCD display and a tactile keypad. It is a “Removable” (indicated by the R in the model name) control unit that can be mounted directly on the drive or remotely on a cabinet door using a mounting platform. It allows users to modify parameters, view actual signals (like motor speed or current), and receive clear-text fault diagnostic messages.

Technical Parameters

Product Advantages

• User-Friendly Interface: Unlike simple LED displays, the CDP312R provides full-text descriptions of parameters and faults, eliminating the need to constantly refer to a manual for error codes.
• Copy/Paste Functionality: It has an internal memory that allows users to upload a parameter set from one drive and “download” it to another, significantly speeding up the commissioning of multiple identical units.
• Real-time Monitoring: The display can show up to three different operational values simultaneously (e.g., Output Frequency, Motor Current, and Torque).
• Remote Mounting Capability: It can be installed up to 3 meters away from the drive (or further with a signal converter), allowing operators to control the motor without opening high-voltage cabinets.

Important Considerations (Precautions)

• Hot-Plugging: While generally robust, it is recommended to power down the drive or ensure the drive is “Inhibit” before plugging or unplugging the panel to avoid communication glitches.
• Cable Length: If mounting remotely, use the official ABB shielded serial cable. Standard phone cables may suffer from electromagnetic interference (EMI) in industrial environments.
• Environmental Shielding: If used in wash-down areas or extremely dusty environments, ensure the protective transparent cover is used to maintain the keypad’s lifespan.

Product Applications

• Industrial Motor Control: Used in heavy industries (Steel, Paper, Mining) to set up high-power motor parameters.
• HVAC Systems: Controlling large fan and pump applications in commercial infrastructure.
• System Integration: Serving as a local maintenance tool for technicians to perform diagnostics on drives integrated into complex PLC networks.
• OEM Machinery: Provided as the standard interface for specialized machinery builders using ABB drive technology.
