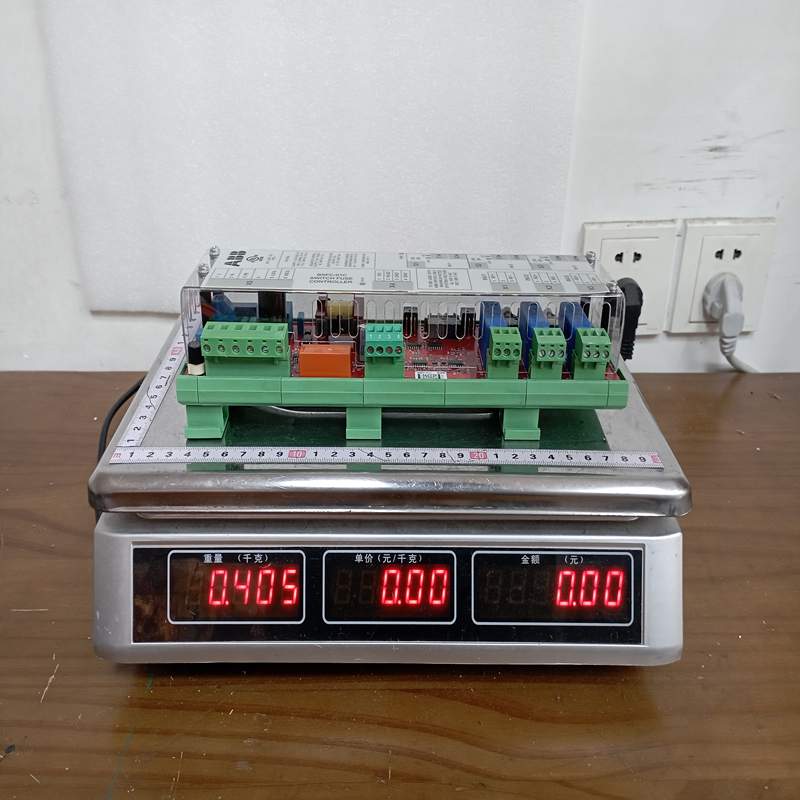

ABB BSFC-01C Charging Control Board

Description

ABB BSFC-01C Charging Control Board

Product Overview

The ABB BSFC-01C (Ordering Code: 3AXD50000006072) is an essential charging controller board designed for high-power ABB variable frequency drives (VFDs), such as the ACS880 series.

Its primary function is to manage the intermediate DC link pre-charging process. By controlling the pre-charge circuit, it safely energizes the DC bus capacitors upon power-up, limiting high inrush currents and protecting internal semiconductor switches and rectifiers from thermal stress.

Technical Specifications

Key Advantages

• Controlled Inrush Current: Safely ramps up voltage across the DC bus capacitor bank, preventing severe voltage dips and component degradation during startup.
• High Reliability & Integration: Engineered specifically for ABB’s industrial drive platform, ensuring seamless communication with main drive control units (BCU/CU).
• Enhanced System Protection: Built-in circuit monitoring helps identify pre-charge faults early (e.g., shorted DC link or blown pre-charge resistors) to protect the entire drive frame.
• Industrial Durability: Features protective conformal coating, ensuring resistance to harsh environment factors like dust, corrosive gases, and humidity.

Important Usage & Installation Precautions

• ESD Safety: The board contains sensitive CMOS components. Electrostatic Discharge (ESD) protective gear (grounding wrist straps) must be used during installation or maintenance.
• Complete Power Disconnect & Discharge Warning: Before handling the BSFC-01C board, disconnect all power sources and wait at least 5 minutes to allow the DC capacitors to fully discharge. Always verify 0 V across the DC bus with a multimeter.
• Firmware & Hardware Compatibility: Ensure the board revision aligns with the specific drive module frame size and firmware version. Replacing boards with mismatched part numbers can cause pre-charge sequences to time out or trigger drive fault codes.
• Correct Wiring & Fastener Torque: Pay careful attention to signal plug orientation and ensure mounting screws are torqued properly to maintain reliable ground reference points.

Applications

• Heavy Industrial VFD Systems: Integrated within high-power ACS880 single drives and multi-drive lineups.
• Process Automation: Used in variable frequency drive units controlling heavy machinery in steel mills, paper mills, mining equipment, and cement plants.
• Pumping & Compression: Utilized in high-capacity water pumping stations, gas compressors, and large HVAC chillers requiring smooth power-up sequences.
