ABB ASFC-01C Charging Control Board

Description

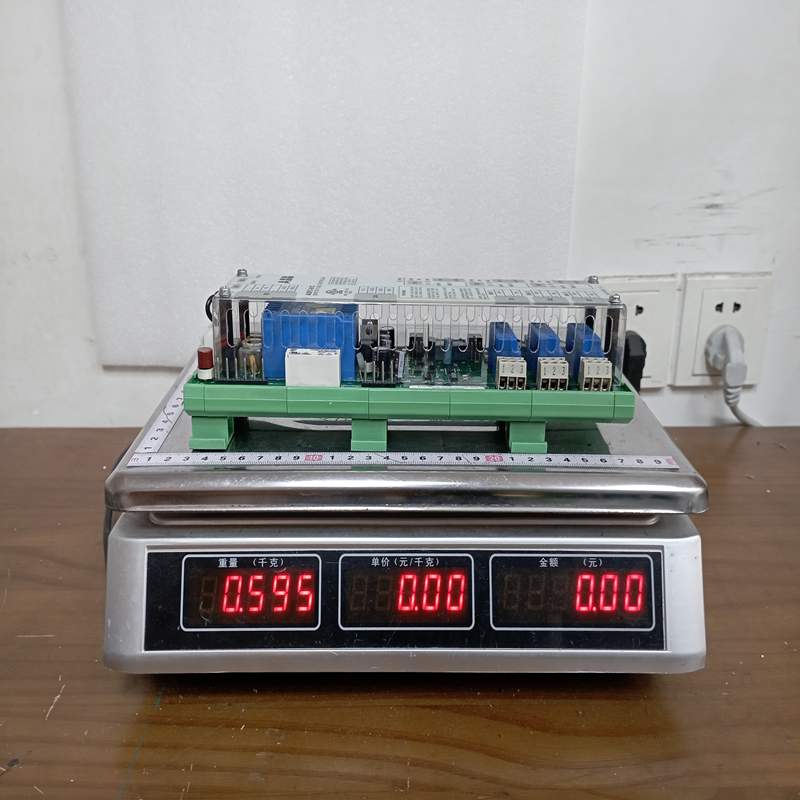

ABB ASFC-01C Charging Control Board

Product Overview

The ABB ASFC-01C (often categorized under part number 64649540) is a specialized Switch-Fuse Controller Board designed primarily for high-power industrial drives, including ABB’s ACS800 drive series and related multi-drive configurations.

Its core responsibility is monitoring and controlling the status of the main DC/AC switch-fuses, charging circuits, and line contactor assemblies. By interfacing directly with the drive control unit, it ensures safe power-up sequences, prevents high inrush currents, and provides rapid fault detection.

Technical Specifications

Key Advantages

• Controlled DC Bus Pre-charging: Coordinates charging resistor switching to safely charge DC bus capacitors, preventing damaging inrush current spikes.
• Real-time Auxiliary Monitoring: Continuously checks the physical state of switch-fuses and main contactors to ensure fault-free circuit closing.
• Enhanced System Safety: Integrates interlocks that trip or inhibit drive operation if a blown fuse or auxiliary switch failure is detected.
• Seamless Integration: Built to plug directly into ABB’s modular drive architecture with minimal configuration required.
• High Reliability: Engineered for harsh industrial environments with robust noise immunity and precise switching control.

Important Usage & Installation Precautions

• Correct Voltage Configuration: Double-check the control voltage selection (115 V vs. 230 V AC) before energizing the board to prevent permanent damage to the control electronics.
• High Voltage Safety: The module directly interfaces with high-voltage DC bus and AC line components. Ensure all main power sources are isolated, locked out, and DC capacitors are fully discharged before handling or servicing.
• Electrostatic Discharge (ESD) Protection: Handle the circuit board using proper anti-static precautions (ESD wrist strap) to prevent damage to sensitive surface-mount components.
• Terminal Wiring & Interlocks: Ensure auxiliary contact feedback wires are connected securely with correct polarity according to ABB wiring schematics to avoid false trip states.
• Firmware & Board Revision Compatibility: When replacing an older version (e.g., ASFC-01 or ASFC-01B), verify firmware and jumper configurations on the host control unit match the ASFC-01C specifications.

Applications

• ABB ACS800 Multi-drive Systems: Manages charging and main switch-fuse logic across shared DC bus lineups.
• Heavy Industrial Variable Frequency Drives (VFDs): Integrated into high-power cabinet-built drives requiring active pre-charging circuits.
• Process Line Drives: Used in continuous industrial operations such as paper mills, steel rolling, and mining conveyors where controlled power-up and fuse diagnostics are critical.
• Power Conversion Equipment: Provides switch-fuse auxiliary signal conditioning and interface control in custom power supply and drive cabinets.
