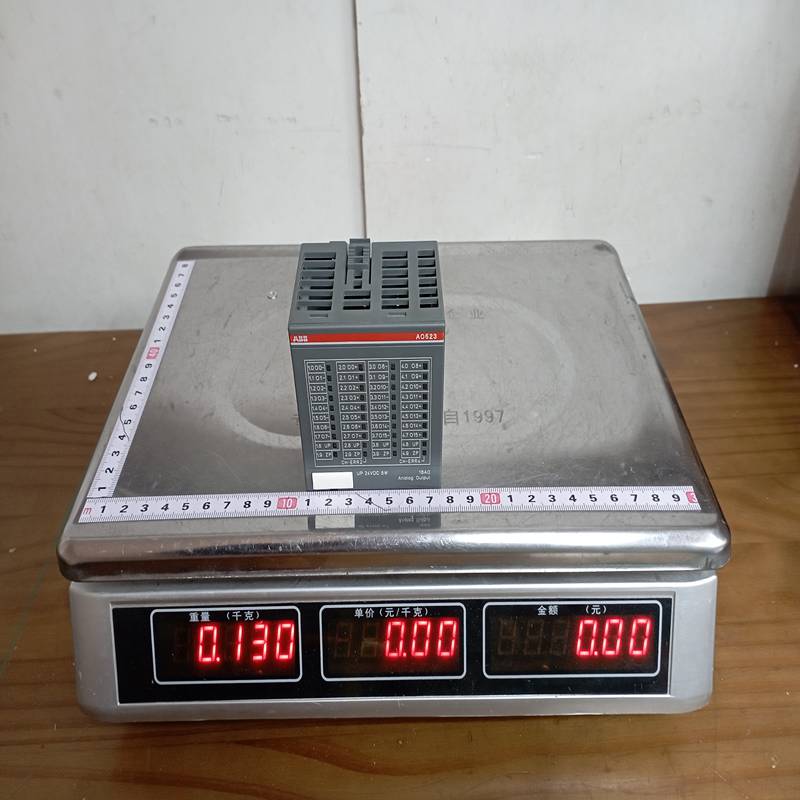

ABB AO523 16-Channel Analog Output Module

Description

ABB AO523 16-Channel Analog Output Module

The ABB AO523 is a high-density Analog Output module belonging to the AC500 Programmable Logic Controller (PLC) platform. It is designed to interface with field devices that require variable control signals, such as proportional valves, variable frequency drives (VFDs), and actuators.

Product Detailed Description

The AO523 is an S500 I/O expansion module that provides 16 analog output channels in a single compact width. Each channel can be independently configured for different signal types (voltage or current), offering high flexibility for complex industrial automation tasks. It is typically mounted on a TU515 or TU516 terminal unit, which allows for easy wiring and “hot-swap” capabilities.

Technical Parameters

Product Advantages

• High Density: With 16 channels in one module, it significantly reduces the space required in the control cabinet compared to standard 4 or 8-channel modules.
• Versatile Configuration: Each channel is software-configurable. You can mix voltage and current outputs on the same module without needing different hardware variants.
• Diagnostics: Features comprehensive LED status indicators for “Module Power” and “Error,” along with internal diagnostics that can be read by the CPU to detect short circuits or broken wires.
• Seamless Integration: Fully compatible with the Automation Builder engineering suite, allowing for easy drag-and-drop configuration and I/O mapping.

Important Considerations & Precautions

• Terminal Unit Requirements: The AO523 must be paired with a compatible terminal unit (like the TU515). Ensure the terminal unit is correctly grounded to prevent signal noise.
• External Power: The analog outputs require an external 24 V DC supply. Ensure this power source is stable and filtered, as fluctuations can affect the precision of the output signals.
• Cable Shielding: To maintain 12-bit accuracy, use shielded twisted-pair cables for all analog signals. The shield should be grounded at the PLC side to mitigate Electromagnetic Interference (EMI).
• Load Impedance: Observe the maximum load limits (typically \le 500 \Omega for current outputs and \ge 1 k \Omega for voltage outputs) to ensure the module stays within its linear operating range.

Product Applications

The ABB AO523 is widely used in process and factory automation:

• Process Control: Driving control valves for flow, pressure, or temperature regulation in chemical and water treatment plants.
• Motion & Drives: Providing speed reference signals (0–10V or 4–20mA) to Variable Frequency Drives (VFDs) in conveyor systems.
• HVAC Systems: Controlling dampers and fan speeds in large-scale building management systems.
• Power Management: Interfacing with power regulators or transducers in energy monitoring applications.
