ABB 3BSE013284R1 TC515V2 Communication Module

Description

ABB 3BSE013284R1 TC515V2 Communication Module

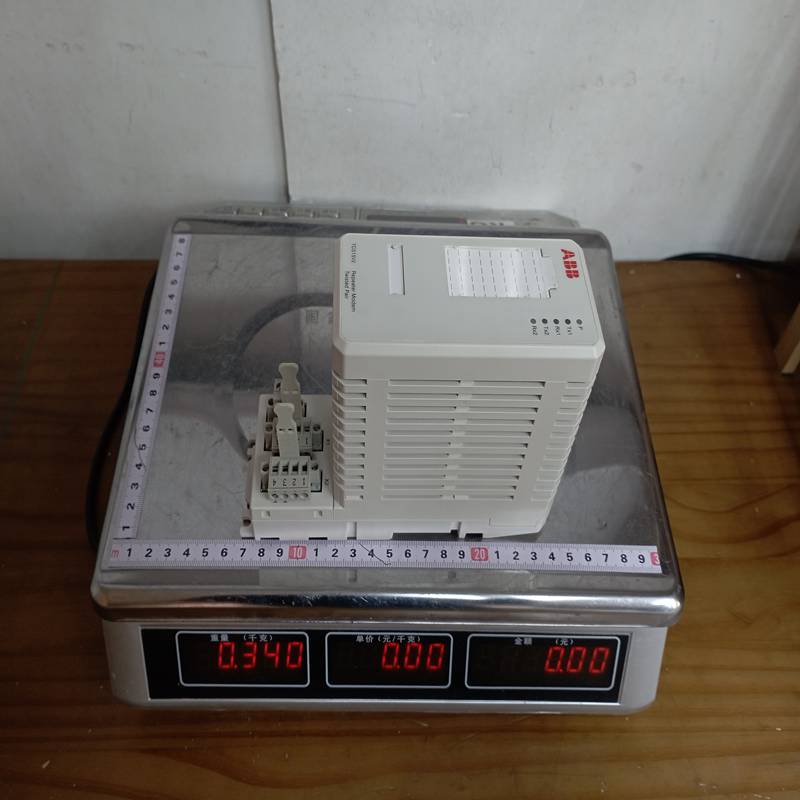

The ABB TC515V2 (3BSE013284R1) is a high-performance Twisted Pair Modem belonging to the ABB Advant Controller series (specifically within the Advant OCS and Master systems). It is designed to facilitate robust, long-distance communication between industrial controllers and I/O units.

1. Product Description

The TC515V2 acts as a communication interface that converts electrical signals for transmission over twisted-pair cables. It is primarily used to extend the reach of the MasterFieldbus or other proprietary ABB communication links, ensuring data integrity in electrically noisy industrial environments.

2. Technical Specifications

Below are the core parameters for the TC515V2:

3. Key Advantages

• High Reliability: Engineered for 24/7 continuous operation in harsh industrial sectors like power plants and chemical processing.

• Galvanic Isolation: Provides excellent protection against ground loops and electrical surges, preventing damage to the main controller.

• Long-Distance Reach: Allows for extended communication distances compared to standard direct-wire connections.

• Plug-and-Play Compatibility: Specifically designed to integrate seamlessly with ABB Advant OCS (Open Control System) hardware.

4. Product Applications

The TC515V2 is widely used in distributed control systems (DCS) for:

• Power Generation: Connecting remote I/O stations to the central logic unit.

• Oil & Gas: Facilitating data exchange in refineries where equipment is spread over large areas.

• Pulp & Paper: Managing high-speed synchronization between different stages of the production line.

• Metals & Mining: Used in rugged environments to maintain stable communication between field devices.

5. Important Considerations (Precautions)

1. Termination: Ensure correct line termination (typically 150 ohms) is applied at both ends of the twisted pair to avoid signal reflection.

2. Cable Quality: Use only high-quality shielded twisted-pair (STP) cables to maximize noise immunity.

3. Static Protection: This module contains sensitive CMOS components. Always use an ESD wrist strap during installation or replacement.

4. Firmware Compatibility: Verify that your existing controller’s software version supports the V2 (Version 2) hardware to ensure full functionality.
