ABB 3BHE022291R0101 Communication Control Measurement Module

Description

ABB 3BHE022291R0101 Communication Control Measurement Module

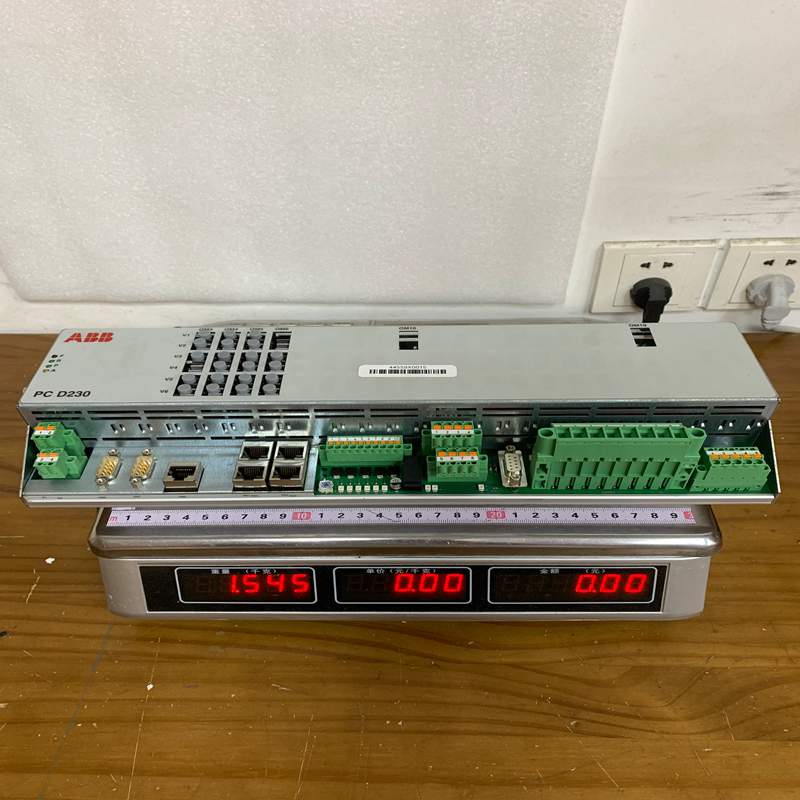

The ABB 3BHE022291R0101 (often designated by the type code PCD230A) is a high-performance control and interface module used within ABB’s specialized industrial control systems, particularly in large-scale power electronics and excitation systems (such as the UNITROL or MEGATROL series).

Product Detailed Description

The PCD230A 3BHE022291R0101 acts as a processing or communication hub within ABB’s advanced control architectures. It is designed to handle high-speed data acquisition, control loop calculations, and communication synchronization between the main processing controller and peripheral power electronic units (like thyristor firing units).

Built to withstand severe industrial conditions, this module provides the rugged reliability required for critical infrastructure, such as power generation plants and heavy industrial facilities.

Product Parameters

Product Advantages

• High-Speed Processing: Equipped with optimized microprocessors to compute complex algorithms and regulate electrical parameters in real-time.
• Excellent Noise Immunity: Often features optical fiber interfaces for signal transmission, isolating the control logic completely from high-voltage electromagnetic interference (EMI).
• Deterministic Performance: Ensures that control packets and critical system safety commands are delivered without transmission delays.
• Industrial Reliability: Built with high-grade industrial components to ensure an extended Mean Time Between Failures (MTBF) in 24/7 continuous operations.

Important Considerations & Precautions

• Electrostatic Discharge (ESD): This module contains static-sensitive integrated circuits. Always use an ESD wrist strap and handle the module by its edges during installation.
• Firmware Synchronization: When replacing an existing PCD230A module, ensure that the new unit’s firmware version aligns with the configuration software and the rest of the controller rack.
• Fiber Optic Care: If the module utilizes fiber optic connections, avoid tight bends in the cables (observe minimum bend radius) and ensure the connectors are completely free of dust before insertion.
• Firm Seat: Ensure the card is pushed firmly into its backplane slot and that the retaining screws are tightened to prevent vibration-induced disconnections.

Product Applications

The 3BHE022291R0101 is typically integrated into high-power applications:

• Power Plant Generation: Used within ABB UNITROL excitation systems to control the field current of synchronous generators.
• Large Variable Speed Drives: Implemented in heavy-duty medium voltage AC or DC drives for mining hoists, steel rolling mills, and marine propulsion.
• Static Var Compensators (SVC): Managing grid stability and power quality systems in electrical substations.
