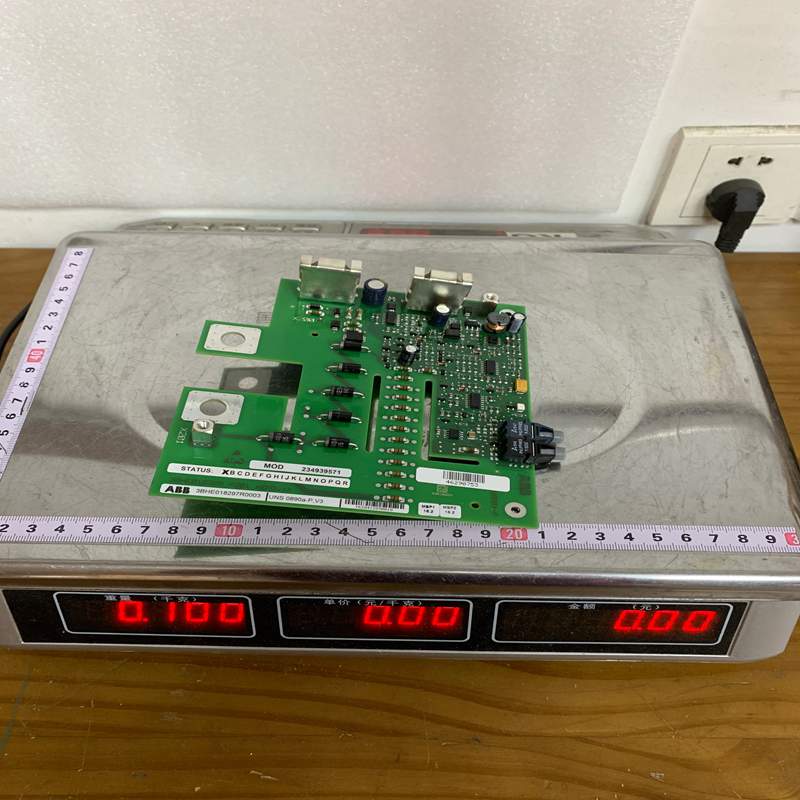

ABB 3BHE018297R0003 Excitation System Digital I/O Board

Description

ABB 3BHE018297R0003 Excitation System Digital I/O Board

The ABB 3BHE018297R0003 (often designated as part of the UNS 0890 A01 series, specifically the SCIU1) is a high-voltage Snubber Control Interface (SCI) or buffer control interface board. It is primarily used within ABB’s high-power electronics systems, such as static excitation systems for synchronous generators and heavy-duty industrial drive frameworks like the AC800PEC.

Product Detailed Description

The 3BHE018297R0003 SCIU1 functions as a specialized interface board designed to handle up to 1500V operations. Its primary role is to bridge control signals to power electronic switches (like thyristors or IGCTs) and manage snubber circuits. In massive power conversion equipment, snubber circuits suppress voltage spikes (dv/dt) during switching; this module provides the critical isolated monitoring and control interface necessary to keep those circuits running safely.

Technical Parameters

Product Advantages

• High Voltage Isolation: Built to tolerate up to 1500V levels safely, ensuring sensitive low-voltage control electronics (DCS/PLCs) are fully isolated from high-power transient noise.
• Precise Timing Control: Essential for the synchronization of snubber circuits and valve firing sequences, maximizing power efficiency and equipment lifespan.
• Rugged Industrial Design: Engineered explicitly for critical power plant and industrial substation environments, delivering long-term thermal stability.
• Seamless Power System Integration: Fits naturally within ABB’s UNITROL series (excitation systems) and large medium-voltage motor drives, removing compatibility guesswork.

Important Considerations & Precautions

• High Voltage Danger: This board operates directly alongside circuits carrying up to 1500V. Always ensure the entire system is powered down, locked out, and capacitors are fully discharged before handling or replacing the unit.
• Fiber Optic Handling: If fiber optic channels are utilized on this interface, do not bend cables beyond their minimum bend radius, and protect connections from dust or oil residue.
• Static Electricity (ESD): Like most complex industrial PCBs, it contains sensitive CMOS components. Use an ESD wrist strap and anti-static packaging during swap-outs.
• Exact Revision Matching: Power electronic controllers rely heavily on matching component revisions. Ensure that the UNS 0890 A01 sub-code and firmware levels align exactly with the board being replaced.

Product Applications

The 3BHE018297R0003 is found in highly critical, heavy-power sectors:

• Static Excitation Systems (SES): Used in power plants within ABB UNITROL systems to control the field winding currents of large synchronous generators.
• Medium Voltage (MV) Drives: Part of the control/buffer system for massive frequency converters used in mining hoists, steel mills, and gas compressors.
• Grid Stabilization: Integrated into Static Var Compensators (SVC) and flexible AC transmission systems (FACTS) where high-speed high-voltage switching occurs.
