ABB 1TGE102009R4800 Industrial Touch Controller

Description

ABB 1TGE102009R4800 Industrial Touch Controller

Product Overview

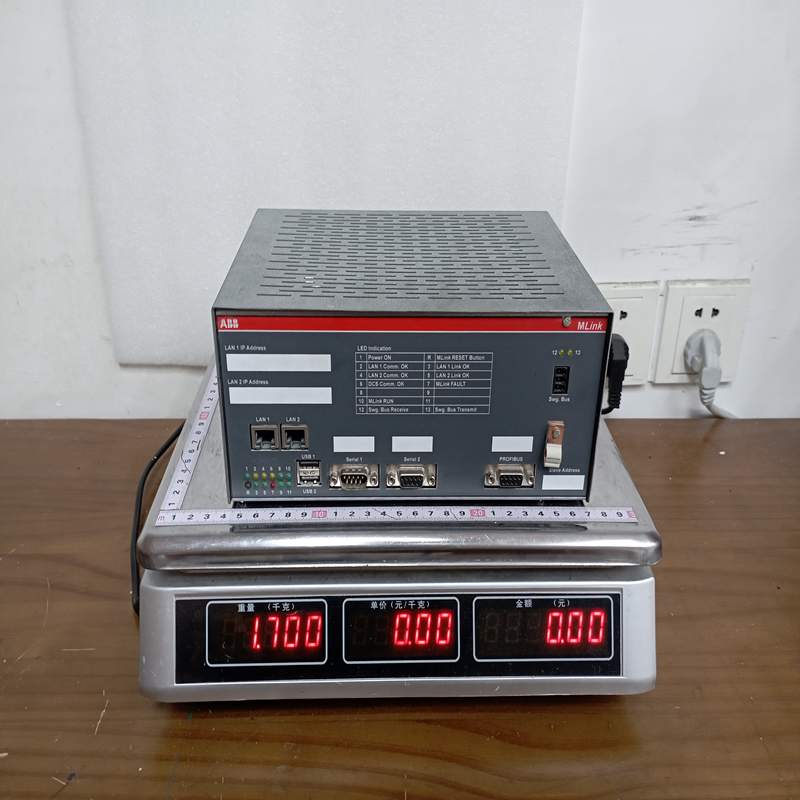

The ABB 1TGE102009R4800 is a specialized communication and control interface module belonging to ABB’s MNS iS low-voltage switchgear system, specifically functioning as an MLink communication interface unit (Basic-Modbus TCP + Serial RS-485).

It acts as a vital gateway linking intelligent motor control centers (IMCC) and switchgear components to higher-level automation, SCADA, or Distributed Control Systems (DCS) via dual industrial communication protocols.

Technical Specifications

Key Advantages

• Dual Network Connectivity: Seamlessly bridges modern Ethernet-based infrastructures (Modbus TCP) with traditional serial networks (Modbus RTU via RS-485).
• Centralized Data Aggregation: Collects real-time diagnostic, measurement, and status data from multiple motor starters and switchgear compartments within the MNS iS system.
• Seamless System Integration: Built specifically for native integration into ABB’s MNS iS low-voltage switchgear architectures, minimizing engineering and commissioning time.
• Enhanced Reliability: Incorporates industrial-grade construction backed by robust MTBF metrics, ensuring continuous operation in demanding electrical substations.
• Streamlined Cabling: Reduces complex point-to-point hardwiring by routing status and control information through digital communication backbones.

Important Usage & Installation Precautions

• Power Supply Stability: Ensure the incoming power source supplies a stable 24 V DC within the specified tolerance range (19 V – 33 V DC) to prevent unexpected reboots or logic errors.
• Cabinet Environment: Rated at IP20, the module must be housed inside a properly rated electrical control room or enclosure (typically IP54 or higher) shielded from moisture, condensation, and conductive dust.
• Network Termination & Addressing: Properly configure the Modbus TCP IP addresses and set correct RS-485 terminating resistors and baud rates for Modbus RTU segments to prevent data packet collisions or communication dropouts.
• Firmware and Configuration Matching: Verify that the module’s firmware version is fully compatible with the connected MNS iS functional blocks and upstream PLC/SCADA software project files.
• Safe Handling Procedures: Always isolate system control power before plugging or unplugging the MLink module to prevent internal component damage from electrical surges.

Applications

• Intelligent Motor Control Centers (IMCC): Core communication backbone for managing smart motor starters and drawers inside ABB MNS iS switchgear lineups.
• Power Distribution & Substation Automation: Used in industrial manufacturing plants, utilities, and commercial facilities for real-time electrical parameter monitoring.
• Process Industries: Deployed extensively in oil and gas, chemical plants, wastewater treatment, and mining facilities where remote switchgear supervision is critical.
• Energy Management & SCADA Systems: Acts as the localized data concentrator routing power grid metrics and breaker/starter statuses back to central control dashboards.
