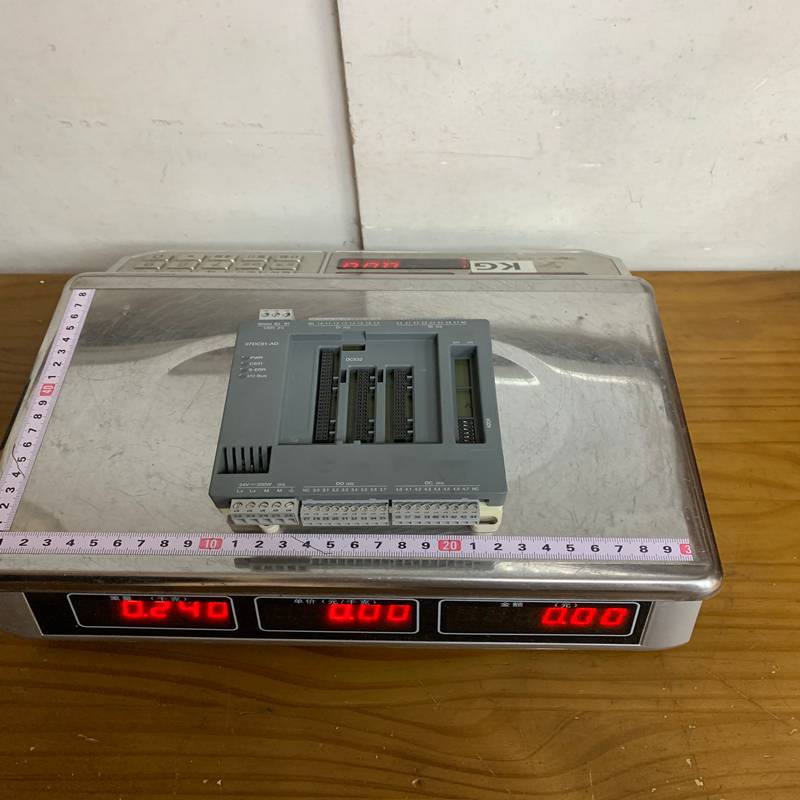

ABB 07DC91-AD Input Module

Description

ABB 07DC91-AD Input Module

The ABB 07DC91-AD is a high-performance Digital Input/Output (I/O) module from the legacy Advant Controller 31 (AC31) series. It is designed to function as a remote unit on the CS31 system bus, providing a high density of I/O points for industrial automation systems.

Product Overview

The 07DC91-AD acts as a distributed I/O module that communicates with a central PLC unit. It is known for its versatility, offering a mix of fixed digital inputs and outputs, as well as flexible channels that can be configured as either.

Technical Parameters

Product Advantages

• Flexibility: The 8 configurable channels allow engineers to adapt the module to specific machine needs without changing hardware.

• High Channel Density: With 32 channels in a single compact module, it saves significant space in control cabinets.

• Robust Diagnostics: Features a built-in “Test” button and comprehensive LED indicators for real-time troubleshooting and fault detection.

• Isolation: The CS31 bus connection is electrically isolated from the process voltage, protecting the central control unit from field-side electrical interference.

• Durability: Built to industrial standards, ensuring long-term reliability in harsh manufacturing environments.

Important Considerations (Notes)

• Address Settings: The module address is set via a rotary switch. Note: The module only reads this address during initialization (power-up). Changes made while powered will not take effect until a restart.

• Earthing: The negative terminal of the process voltage must be integrated into the system’s earthing concept to ensure stable operation and safety.

• Legacy Status: As this is part of the AC31 series (now superseded by the AC500 series), ensure availability of spare parts if used for new designs; it is primarily used for maintenance of existing systems.

Product Applications

The 07DC91-AD is widely used in systems requiring distributed control, including:

• Printing Industry: Coordinating complex sequences in high-speed press machinery.

• Machine Building: Controlling conveyors, packaging machines, and robotic pick-and-place units.

• Process Automation: Monitoring sensors and controlling valves in chemical or food production.

• Infrastructure: Managing water pump stations, traffic signals, and power grid monitoring.
