AB 1738-VHSC24M23 High-Speed Counter Module

Description

AB 1738-VHSC24M23 High-Speed Counter Module

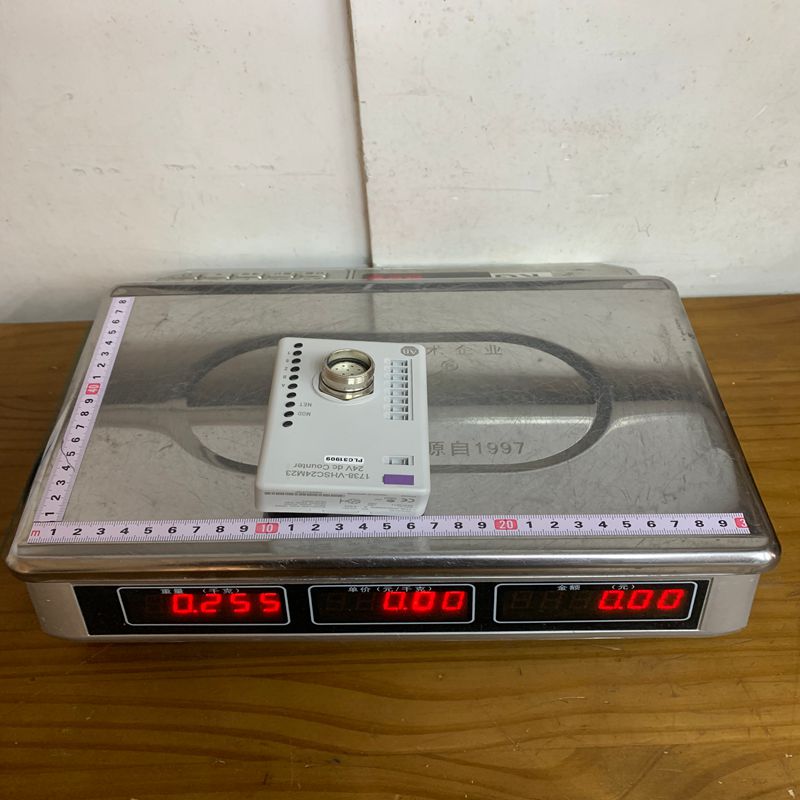

Product Dimensions：

The Allen-Bradley (Rockwell Automation) 1738-VHSC24M23 is a high-performance, Very High Speed Counter (VHSC) module within the ArmorPoint® I/O family. This module is specifically designed for “On-Machine” applications where the I/O needs to be mounted directly on the equipment without an electrical cabinet.

1. Product Detailed Description

The 1738-VHSC24M23 is a 24V DC, 2-channel high-speed counter module. As part of the ArmorPoint series, it features a ruggedized design with an IP67/IP69K rating, making it resistant to dust, high-pressure washdowns, and harsh industrial environments.

It is used to count high-speed pulses from encoders or various switch inputs. The “M23” in the part number signifies that it utilizes M23-style quick-disconnect connectors, which provide secure, vibration-resistant connections for power and signals in demanding physical environments.

2. Product Parameters (Specifications)

3. Product Advantages

• Cabinet-Free Design: The IP67 rating eliminates the need for expensive protective enclosures, reducing installation time and footprint.

• High Performance: Supports input frequencies up to 1 MHz, making it ideal for precision motion control and high-speed production lines.

• Flexible Operational Modes: It can operate in several modes, including:

  • Counter Mode: For simple pulse accumulation.

  • Frequency Mode: To measure the rate of pulses.

  • Pulse Width Mode: To measure the duration of a specific pulse.

• Enhanced Diagnostics: Provides real-time status via LED indicators and digital feedback to the controller regarding pulse overflow or underflow.

• Quick Replacement: The M23 connectors allow for fast “plug-and-play” replacement, minimizing machine downtime during maintenance.

4. Cautions & Precautions

• Signal Integrity: Because this is a high-speed module, ensure that shielded cables are used for inputs to prevent electromagnetic interference (EMI) from corrupting the count.

• Connector Sealing: To maintain the IP67/IP69K rating, all unused M23 ports must be covered with the appropriate protective caps.

• Voltage Limits: Operating outside the 24V DC range can damage the internal circuitry or result in missed pulses.

• Grounding: Ensure the mounting surface or the ArmorPoint base is properly grounded to mitigate electrical noise.

5. Product Applications

The 1738-VHSC24M23 is typically used in automation scenarios requiring rapid response and high precision:

• Packaging Industry: High-speed bottle/can counting and label synchronization.

• Material Handling: Sorting systems and conveyor tracking using incremental encoders.

• Food and Beverage: Washdown environments where equipment is cleaned with high-pressure water jets.

• Flow Measurement: Interfacing with flow meters that output high-frequency pulses for volume calculation.

• Positioning: Calculating the exact position of a machine arm or rotating shaft.
