Description

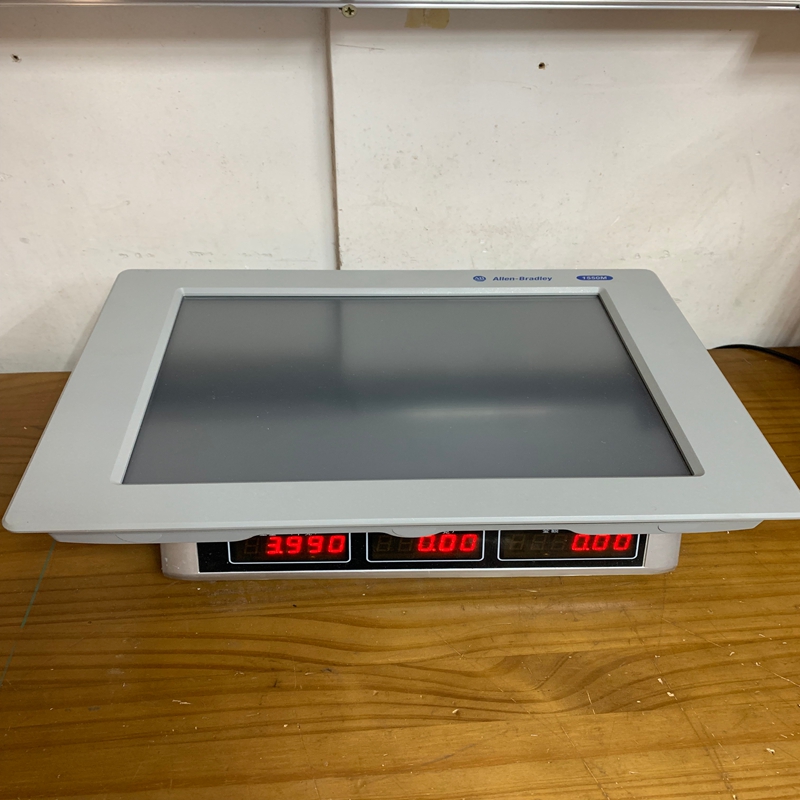

A-B 6176M-15PT Industrial Monitor
Product Dimensions：
Product Description
The Allen-Bradley 6176M-15PT is a 15-inch industrial touchscreen monitor designed for use in harsh industrial environments. It is part of the Allen-Bradley VersaView series, engineered to serve as a human-machine interface (HMI) or operator terminal in automation systems. The monitor features a flat-panel touchscreen with a stainless steel bezel and a NEMA/IP-rated enclosure, making it suitable for mounting in control panels or on industrial machinery.
Product Specifications
| Parameter | Value / Description |
|---|---|
| Display Type | 15-inch Active Matrix TFT LCD |
| Screen Resolution | 1024 × 768 pixels (XGA) |
| Touchscreen Type | Resistive touchscreen |
| Bezel Material | Stainless steel |
| Mounting | Panel mount or arm mount |
| Input Voltage | 18–30 VDC |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 5% to 95% non-condensing |
| Certifications | UL, CE, cUL, NEMA Type 12/13/4X (when panel mounted) |
| Connectivity | VGA and DVI-D video inputs, USB for touchscreen |
| Dimensions (H×W×D) | Approx. 12.6 × 15.3 × 3.1 inches (320 × 389 × 79 mm) |
| Weight | Approx. 11 lbs (5 kg) |
Product Advantages
- Durability: Built with a rugged stainless steel bezel and sealed enclosure to withstand dust, water, oil, and chemicals.
- Touchscreen Accuracy: High-precision resistive touchscreen enables reliable operation even with gloves.
- Wide Compatibility: Supports standard video inputs (VGA/DVI), making it compatible with a wide range of industrial controllers and PCs.
- Flexible Mounting: Can be panel-mounted for integration into enclosures or arm-mounted for operator accessibility.
- Industrial Certifications: Complies with NEMA and IP standards, ensuring reliable performance in harsh environments.
- Ease of Integration: Works seamlessly with Allen-Bradley and Rockwell Automation systems, including FactoryTalk View.
Precautions
- Power Supply: Ensure the input voltage is within the specified 18–30 VDC range to avoid damage.
- Environmental Limits: Do not operate outside the rated temperature and humidity ranges to prevent performance degradation.
- Touchscreen Care: Use only approved cleaning solutions and soft cloths to clean the touchscreen. Avoid sharp objects that may scratch or damage the surface.
- Mounting Security: Secure the monitor properly during installation to prevent vibration or shock from loosening connections.
- EMC Considerations: Install the monitor in accordance with EMC guidelines to minimize interference from other equipment.
Product Applications
- Factory Automation: Used as an operator interface in production lines, packaging systems, and robotic workcells.
- Process Control: Deployed in industries such as oil & gas, water treatment, and chemical processing for monitoring and control.
- Material Handling: Integrated into conveyor systems, sorters, and automated storage and retrieval systems (AS/RS).
- Machine Control: Mounted on CNC machines, presses, and industrial equipment for real-time operator interaction.
- Building Automation: Utilized in HVAC systems, energy management, and facility monitoring stations.
