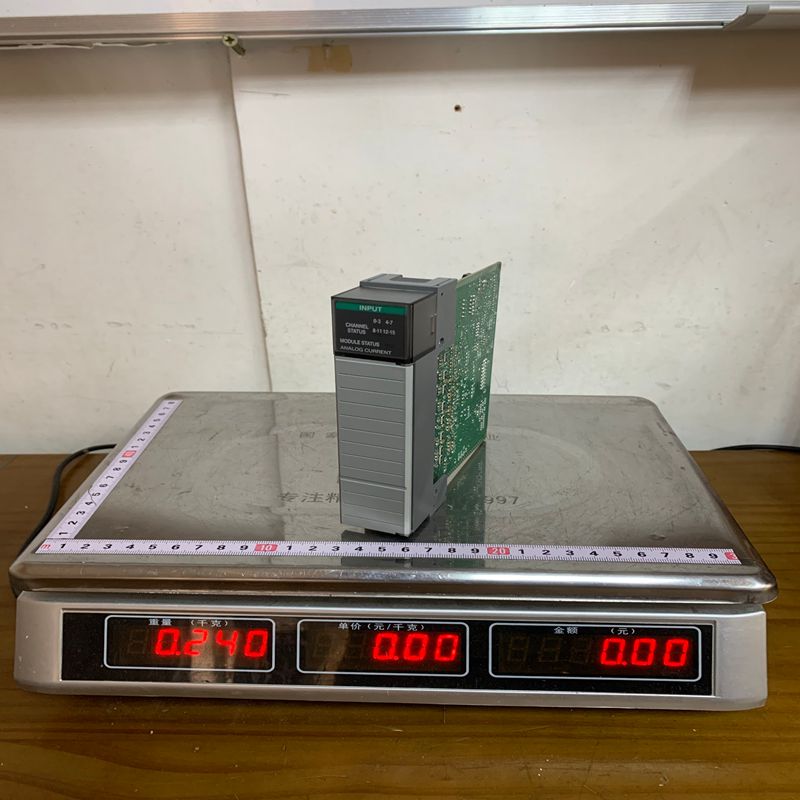

A-B 1746-NI16I Input Module

The Allen-Bradley 1746-NI16I is a high-density analog input module belonging to the SLC 500 family. It is specifically designed to interface with current-loop signals, providing precise data acquisition for industrial control systems.

Below is a detailed breakdown of the module in English.

1. Product Description

The 1746-NI16I is a 16-channel isolated current input module. Unlike standard analog modules that share a common ground, this “I” version features channel-to-channel isolation. This is critical in environments with significant electrical noise or where different sensors operate at different ground potentials. It converts analog current signals (typically 4-20mA) into digital values that the SLC 500 processor can use for logic and monitoring.

2. Technical Specifications

3. Key Product Advantages

• High Density: Provides 16 channels in a single slot, saving rack space and reducing the overall system footprint.

• Channel Isolation: Robust protection against ground loops and noise interference, ensuring high signal integrity in harsh environments.

• High Precision: 16-bit resolution allows for very fine measurements, which is essential for sensitive process control (e.g., temperature or pressure monitoring).

• Flexible Configuration: Users can configure filter frequencies and input ranges per channel via the software (RSLogix 500).

• Diagnostic Features: Includes LED indicators for module status and digital diagnostics for broken wire detection or over-range conditions.

4. Important Considerations (Precautions)

• Module Placement: Avoid placing the analog module next to high-voltage AC modules or heavy inductive loads (like motor starters) to prevent electromagnetic interference.

• Shielding: Use shielded twisted-pair cabling for all analog signals. The shield should be grounded at one end only (usually at the PLC side) to avoid ground loops.

• Power Supply: Ensure your SLC 500 power supply has enough capacity to handle the 125mA (5V) and 100mA (24V) requirements, especially if using multiple 1746-NI16I modules.

• Warm-up Time: The module typically requires a brief warm-up period (approx. 5–30 minutes) to reach its specified accuracy levels.

5. Product Applications

The 1746-NI16I is widely used in process-heavy industries including:

• Water/Wastewater: Monitoring flow meters, tank levels, and pH sensors spread across large distances.

• Oil & Gas: High-density monitoring of pressure transmitters and temperature probes.

• Manufacturing: Precision feedback from current-based sensors in assembly lines.

• HVAC Systems: Integrating multiple environmental sensors for large-scale building management.
