140XBP01000 SCHNEIDER PLC backplane

Description

140XBP01000 SCHNEIDER PLC backplane

Product Dimensions：

Product Detailed Description

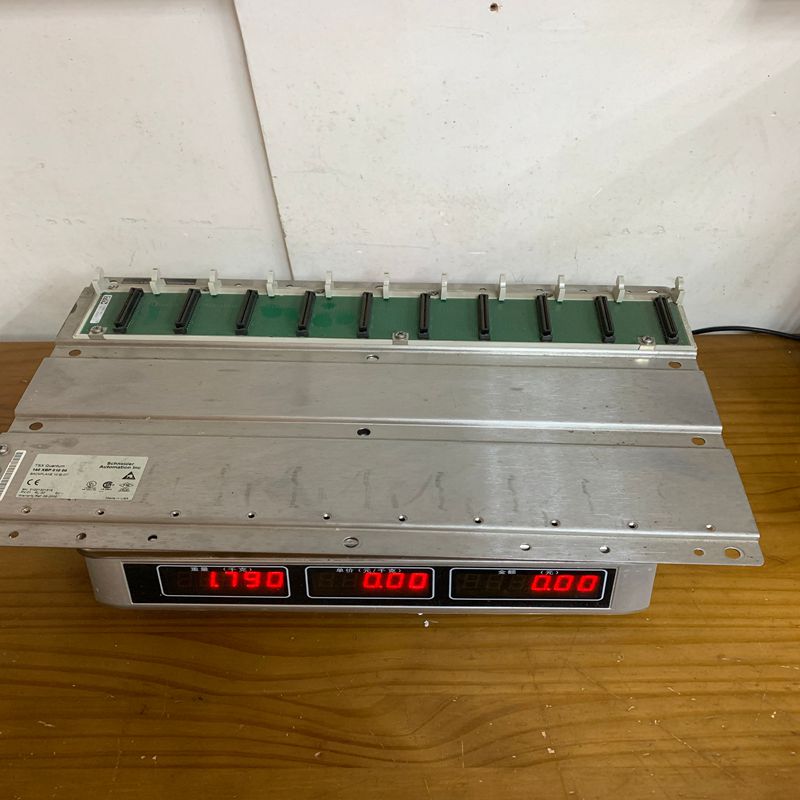

The Schneider Electric 140XBP01000 is a rack backplane from the Modicon Quantum automation platform series. It serves as a foundational component for organizing and connecting Input/Output (I/O) modules in programmable logic controller (PLC) systems. This backplane supports up to 10 free slots, allowing for flexible integration of local, remote, and distributed I/O modules. It distributes control signals and power to installed modules, enabling efficient operation in complex industrial environments. Designed for the Modicon Quantum range, it is compatible with a variety of processors and accessories, making it suitable for continuous or semi-continuous processes. The backplane is engineered for reliability in harsh conditions, including high-vibration settings, and can be used in safety architectures without interfering with safety processes.

Product Parameters

Product Advantages

• Non-Interfering Safety Compatibility: Can be integrated into safety architectures without disrupting safety processes, ideal for critical industrial applications.
• Flexible Slot Configuration: 10 free slots with no reserved positions allow unrestricted module placement, enhancing system customization.
• Robust Construction: Built with high-quality materials for durability in high-vibration and harsh environments, ensuring long-term reliability.
• Efficient Power and Signal Distribution: Provides seamless control signals and power to modules, optimizing data transmission and reducing wiring complexity.
• Versatile Integration: Supports local, remote, and distributed I/O setups, compatible with the full Modicon Quantum ecosystem for scalable automation solutions.
• Secure Installation: Screw-based fixing on a mounting plate ensures stability, minimizing downtime in demanding operations.

Precautions and Notes

• Install power supply modules in the far-left slot to optimize heat dissipation and prevent overheating.
• Ensure proper grounding and adherence to Class 1 Division 2 hazardous location standards during setup to avoid electrical hazards.
• Avoid exceeding the specified temperature ranges (-25°C to 70°C operating; -40°C to 85°C storage) to prevent component failure.
• Use only compatible Modicon Quantum modules and accessories to maintain system integrity; incompatible components may cause signal interference or power issues.
• During installation, verify secure screw fastening on the mounting plate to withstand vibrations; loose connections can lead to intermittent faults.
• Consult the official Schneider Electric datasheet for detailed wiring diagrams and environmental compliance before deployment.

Product Applications

The 140XBP01000 is widely used in industrial automation for mission-critical processes requiring reliable I/O management. Key applications include:

• Manufacturing and Assembly Lines: For controlling distributed I/O in automated production systems.
• Process Control Industries: Such as oil & gas, water treatment, and chemical processing, where remote I/O modules handle sensor data in hazardous or remote locations.
• Industrial Robotics: Integrating local I/O for precise motor control and feedback in robotic arms or conveyor systems.
• Energy and Utilities: Supporting continuous monitoring and control in power plants or substations.
• Food & Beverage Processing: Enabling semi-continuous operations with safety-compliant architectures to meet hygiene and regulatory standards.
