Description
1394C-AM50 Allen‑Bradley Output module

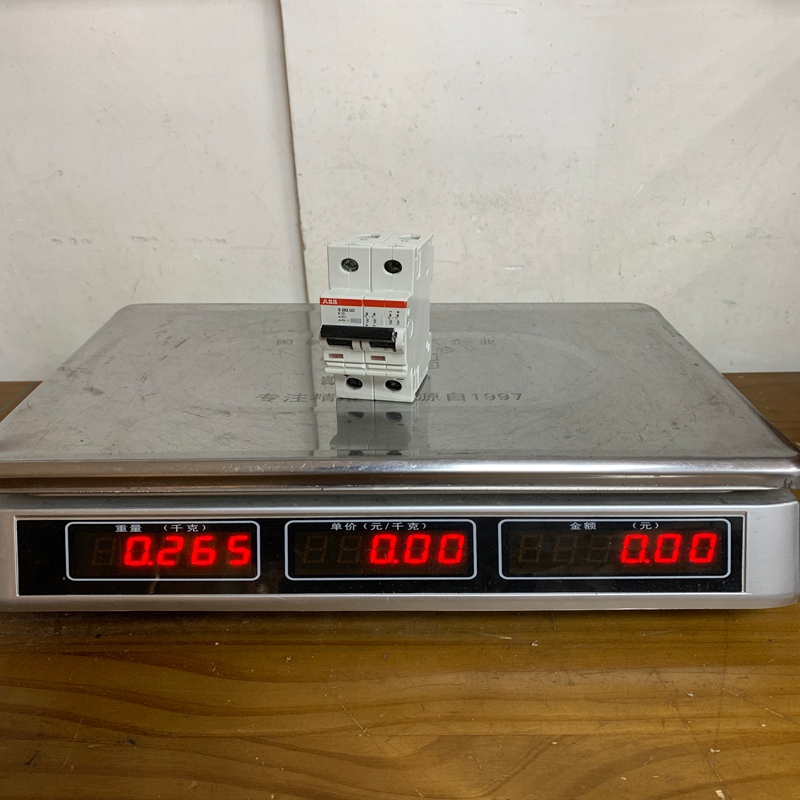

Product Dimensions：
Product Description
The ABB S282-UCK10 is a high-quality miniature circuit breaker (MCB) from ABB’s System pro M compact® series. It is designed to provide reliable overcurrent and short-circuit protection in residential, commercial, and industrial electrical installations. This device features a 10A current rating, C tripping characteristic, and 2-pole configuration, making it suitable for a wide range of applications.
Product Parameters
| Parameter | Value/Description |
|---|---|
| Product Type | Miniature Circuit Breaker (MCB) |
| Model | S282-UCK10 |
| Poles | 2P (2-pole) |
| Current Rating (In) | 10A |
| Tripping Curve | C (trips between 5x and 10x of In) |
| Breaking Capacity | 6 kA (IEC/EN 60898) |
| Rated Voltage | 230/400 V AC |
| Frequency | 50/60 Hz |
| Terminal Type | Cage clamp |
| Operating Temperature | -25°C to +55°C |
| Certifications | IEC/EN 60898, CCC, CE |
Product Advantages
- High Breaking Capacity: With a 6 kA breaking capacity, it ensures safety and reliability in case of short circuits.
- C Tripping Curve: Ideal for protecting circuits with moderate inrush currents, such as lighting and small motors.
- Compact Design: Space-saving construction allows for dense installation in distribution boards.
- Quick Installation: Cage clamp terminals ensure fast, secure wiring without special tools.
- Wide Temperature Range: Suitable for harsh environments with extreme temperatures.
- Global Compliance: Certified to international standards, ensuring broad acceptance and safety.
Precautions
- Installation by Qualified Personnel: Should be installed and maintained by a licensed electrician.
- Correct Rating Selection: Ensure the current rating matches the load requirements to avoid nuisance tripping or insufficient protection.
- Environmental Conditions: Avoid installation in locations with excessive humidity, dust, or corrosive atmospheres unless properly enclosed.
- Compatibility: Verify compatibility with the distribution board and busbar system before installation.
- Regular Testing: Periodically test the breaker’s operation to ensure reliability and safety.
Product Applications
- Residential Electrical Panels: Used in home distribution boards to protect lighting and socket circuits.
- Commercial Buildings: Ideal for office lighting, HVAC systems, and general power circuits.
- Industrial Control Panels: Protects control circuits, small motors, and auxiliary equipment.
- Retail and Hospitality: Used in shops, hotels, and restaurants for lighting and power distribution.
- Educational Institutions: Protects circuits in schools and universities where safety and reliability are critical.
- Modular Equipment: Suitable for use in modular switchgear and control gear assemblies.
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Please make an inquiry for more models：
